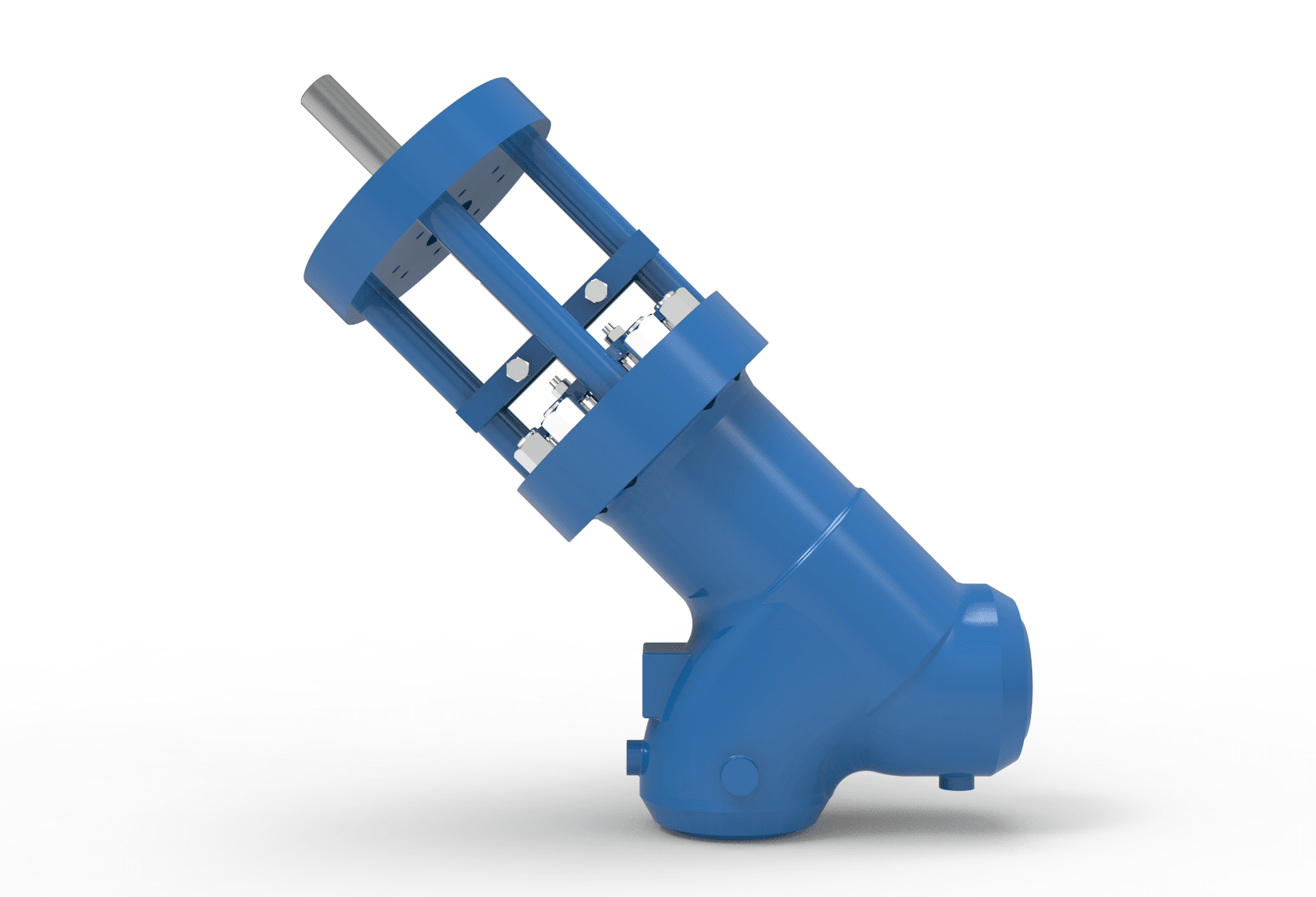

• ATWOOD & MORRILL® ELBOW DOWN VALVES front view

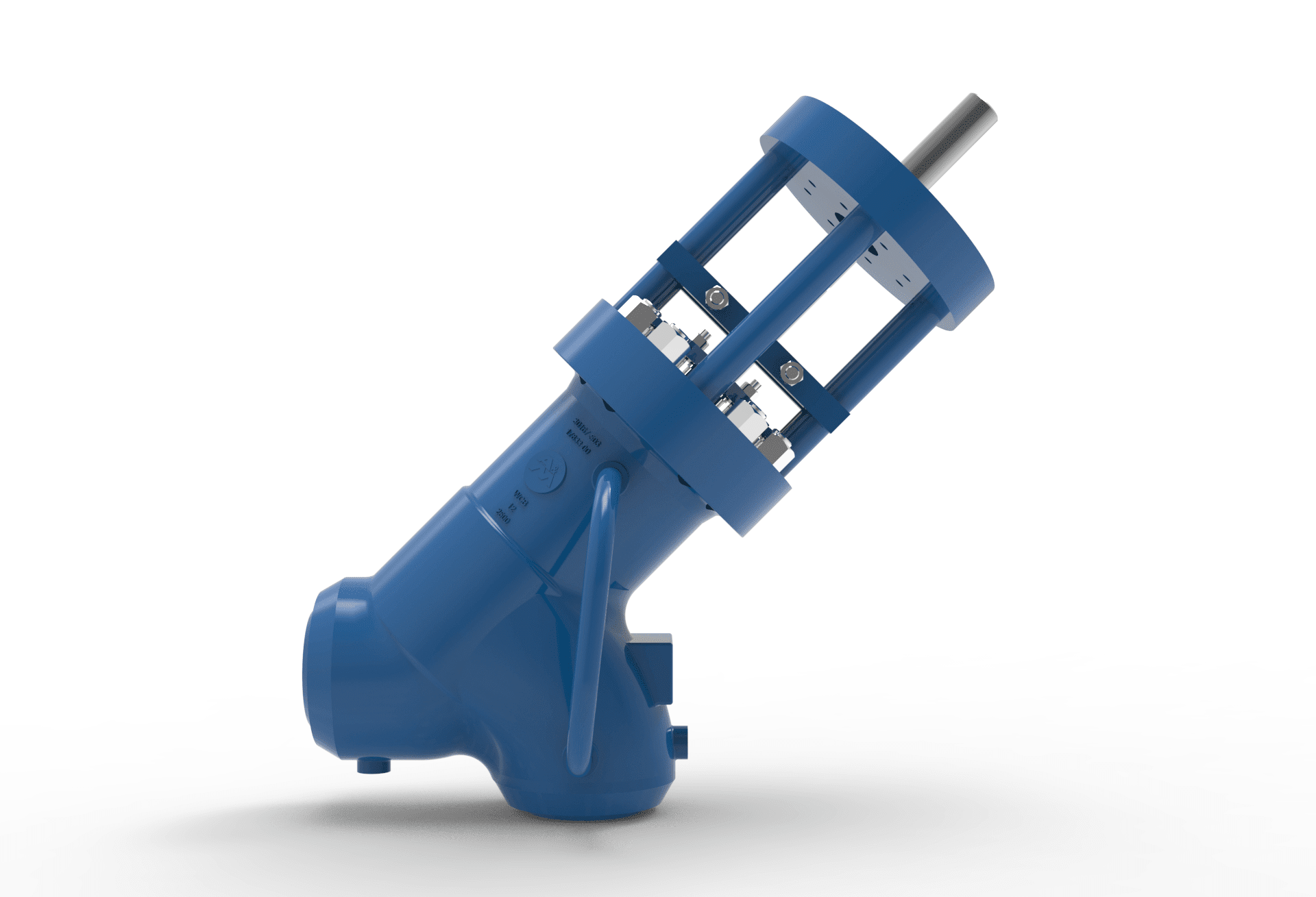

  • ATWOOD & MORRILL® ELBOW DOWN VALVES right side view

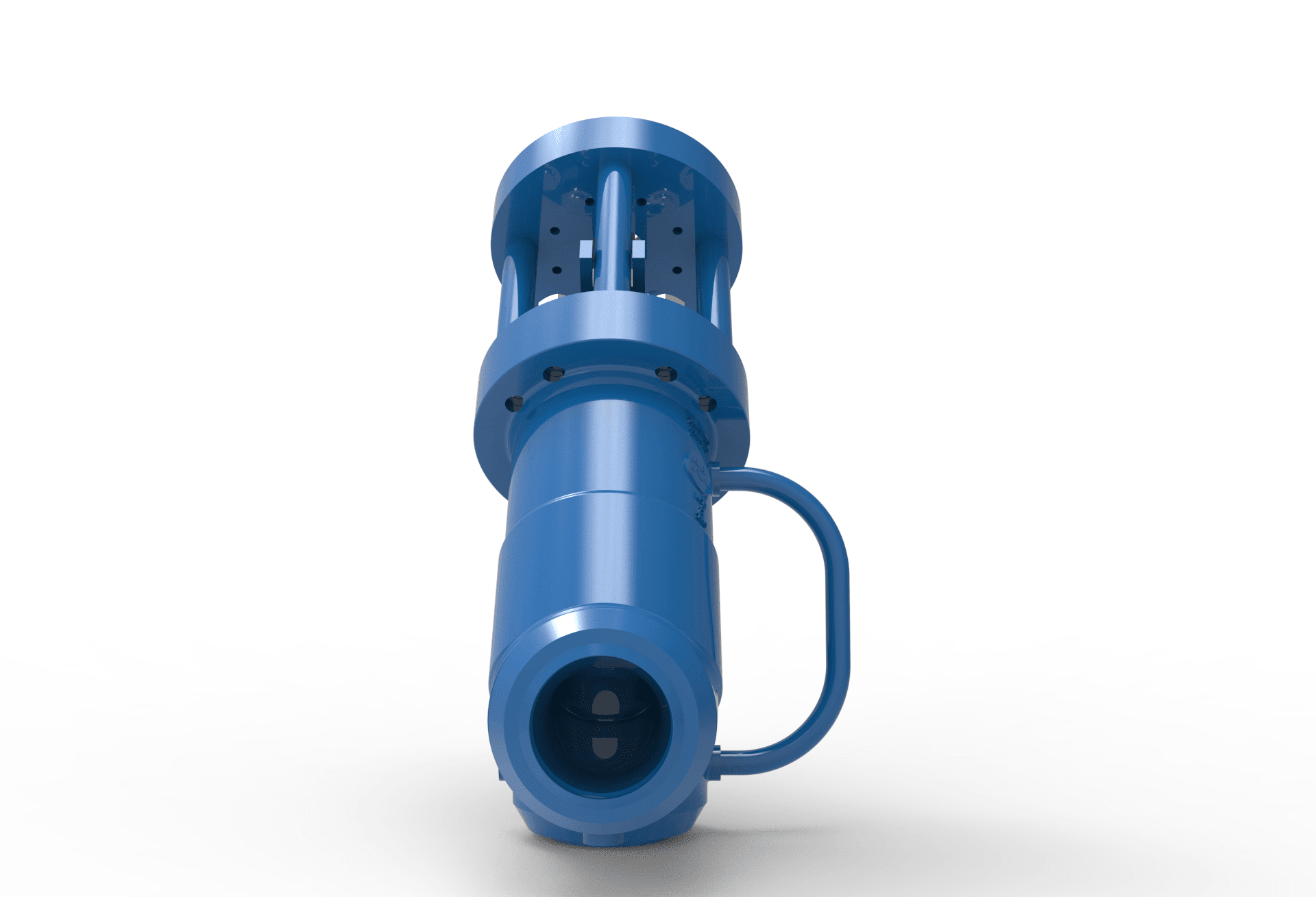

  • ATWOOD & MORRILL® ELBOW DOWN VALVES back view

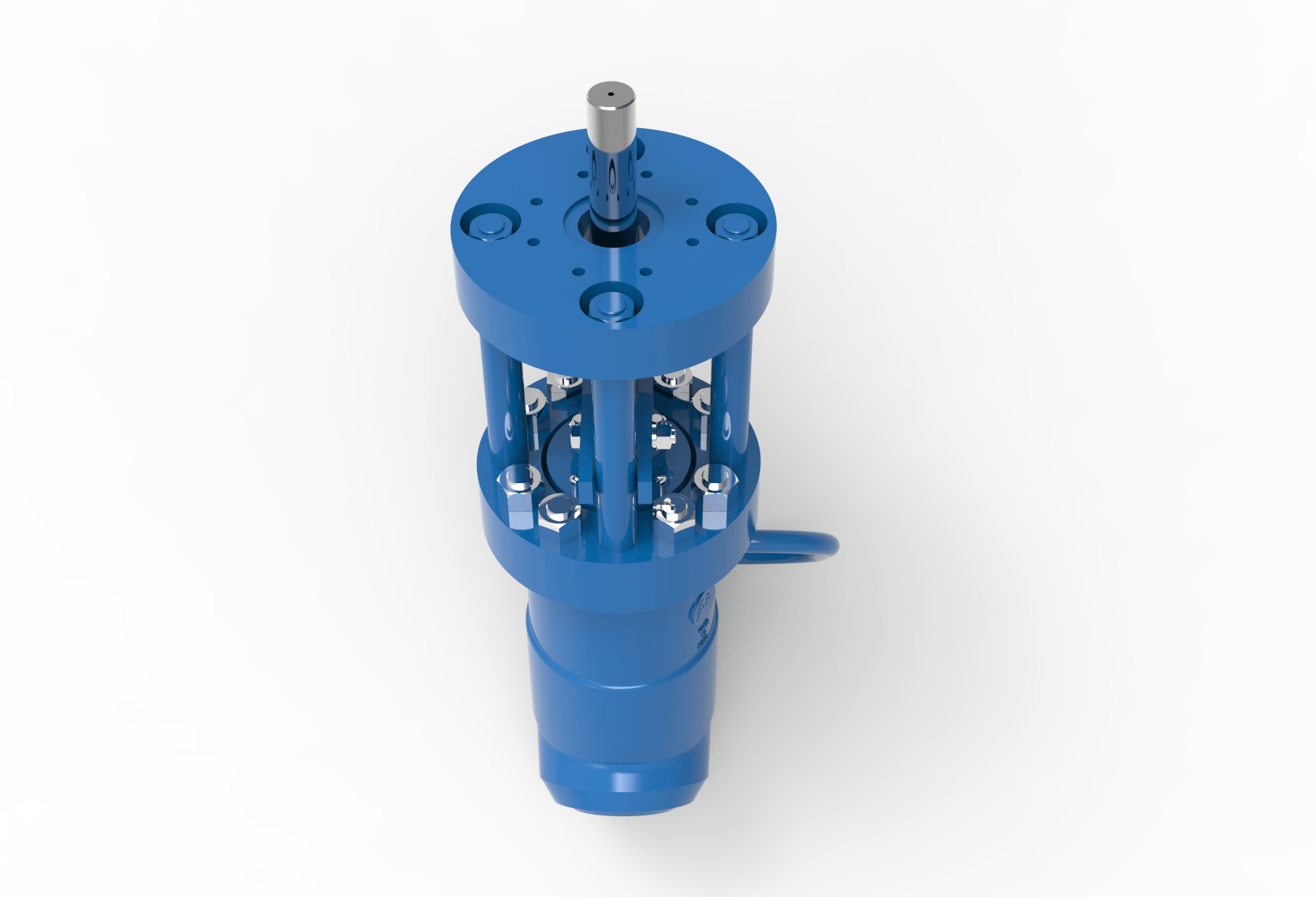

  • ATWOOD & MORRILL® ELBOW DOWN VALVES left side view

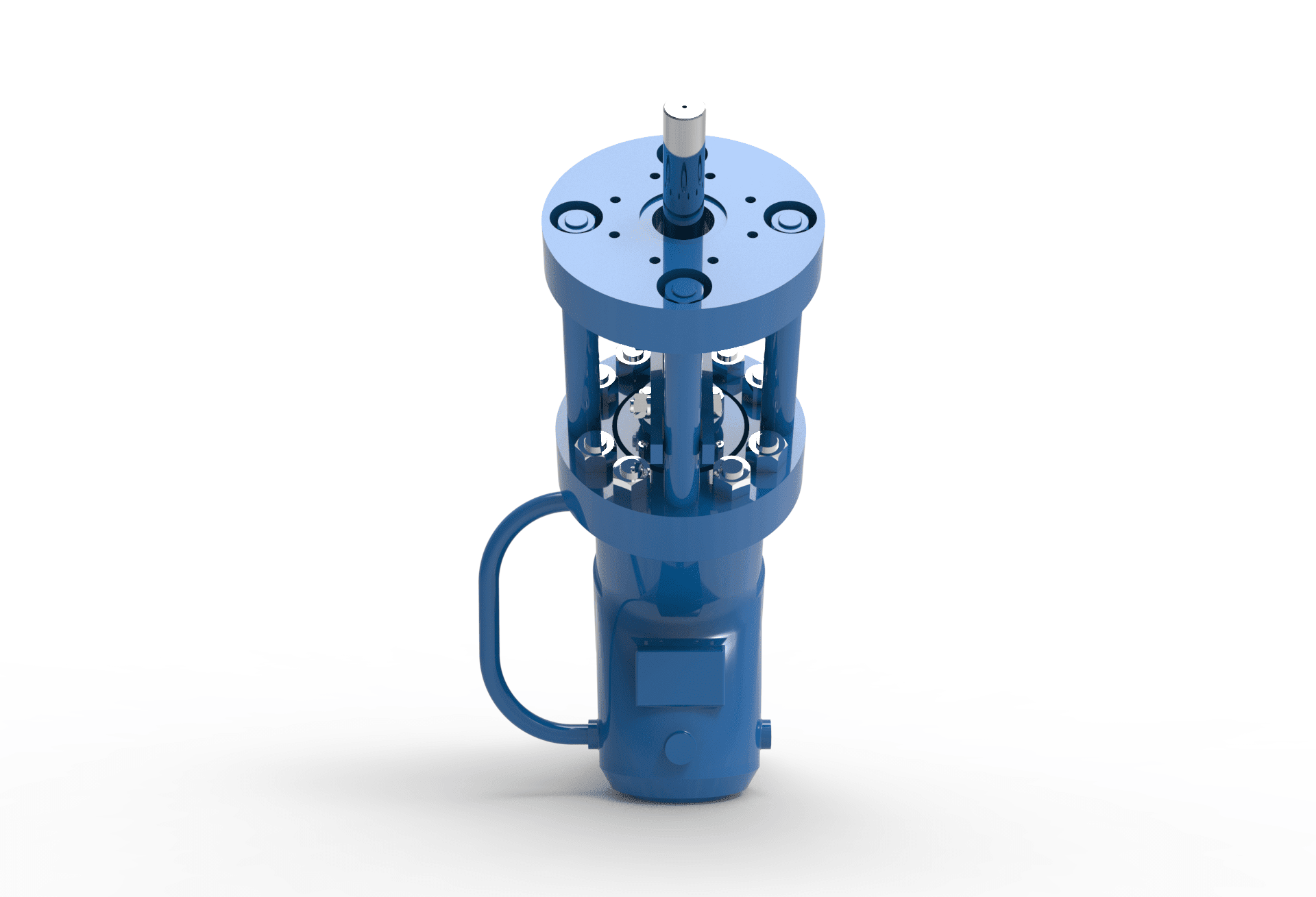

  • ATWOOD & MORRILL® ELBOW DOWN VALVES top view

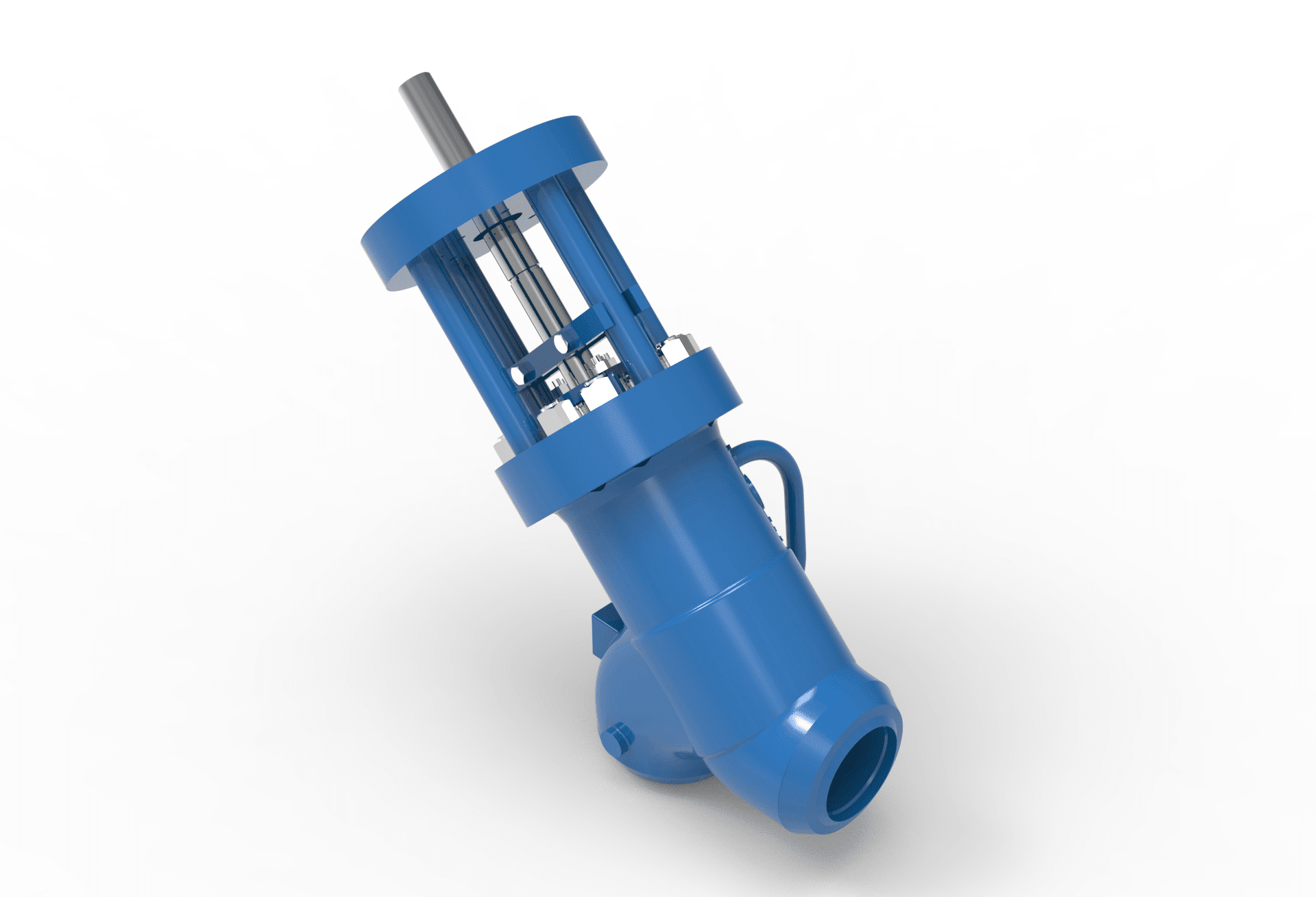

  • ATWOOD & MORRILL® ELBOW DOWN VALVES right angled view

Atwood & Morrill®

Elbow Down Valves

Elbow Down Valves are a special globe valve design used for downward vertical flow off a circulating pump. Elbow down valves are available for high pressure service in a range of sizes.

KEY FEATURES & BENEFITS

  • Optimum performance under a wide range of operating conditions & environments
  • Y-pattern for lower pressure drop (compared to a T-pattern)
  • Beveled seats for tight seating
  • Large seat bore for reduced pressure drop
  • Compact design for easy installation and eliminates the need for piping elbow
  • Fast operation

CONFIGURATIONS

  • Stop-check valve or Lift-check valve

APPLICATIONS

  • Circulating pump discharge stop check and check

DESIGN STANDARD

  • ASME B16.34

PRESSURE CLASS RANGE

  • In accordance with design conditions

SIZE RANGE

  • 10- 18 inches (150 mm – 600 mm) and larger

TEMPERATURE RANGE

  • Up to 1,000°F (538°C)

MATERIALS

  • Cast carbon steel
  • Alloy steel
  • Stainless steel

END CONFIGURATION

  • Weld End

UPGRADES & ADAPTATIONS

  • Live loaded packing

RELATED PRODUCTS

  • Atwood & Morrill®
    Red Point®
