ATWOOD & MORRILL®

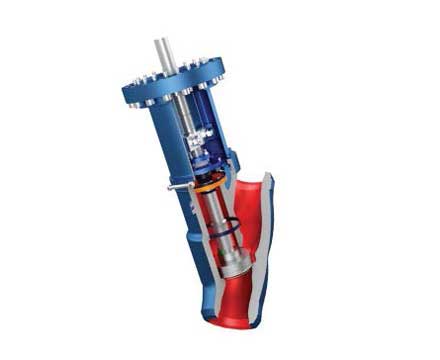

Wye Globe Valves

The Wye Globe valve is designed for high pressure steam and water isolation. The design provides rapid closure and tight shutoff.

KEY FEATURES & BENEFITS

  • Optimum performance under a wide range of operating conditions & environments.
  • Y-pattern for lower pressure drop.
  • Bevelled seats for tight seating.
  • Large seat bore for reduced pressure drop.
  • Optional patented thermal compensation device relieves the thrust load built up in the valve stem as the internal temperature rises, prevents failure of valve stem, actuator, or both.
  • Optional forged body with stem guided poppet.

CONFIGURATIONS

  • Stop-Check Valve
  • Lift Check Valve
  • Stop Valve Valve

APPLICATIONS

  • Boiler feedwater pump non-return and isolation
  • Feedwater heater isolation main steam stop & non-return
  • Economiser inlet & stop
  • Boiler outlet stop and non-return
  • Main steam isolation

DESIGN STANDARD

  • ASME B16.34

PRESSURE CLASS RANGE

  • ASME 600 to 2500

SIZE RANGE

  • 6 – 24 inches (150 – 600 mm) and larger

TEMPERATURE RANGE

  • Up to 1,200ºF

MATERIALS

  • Cast carbon
  • Alloy steel
  • Stainless steel

END CONFIGURATION

  • Weld End

UPGRADES & ADAPTATIONS

  • Live loaded packing
  • Replace hard seal with graphite seal
