Sarasin-RSBD®

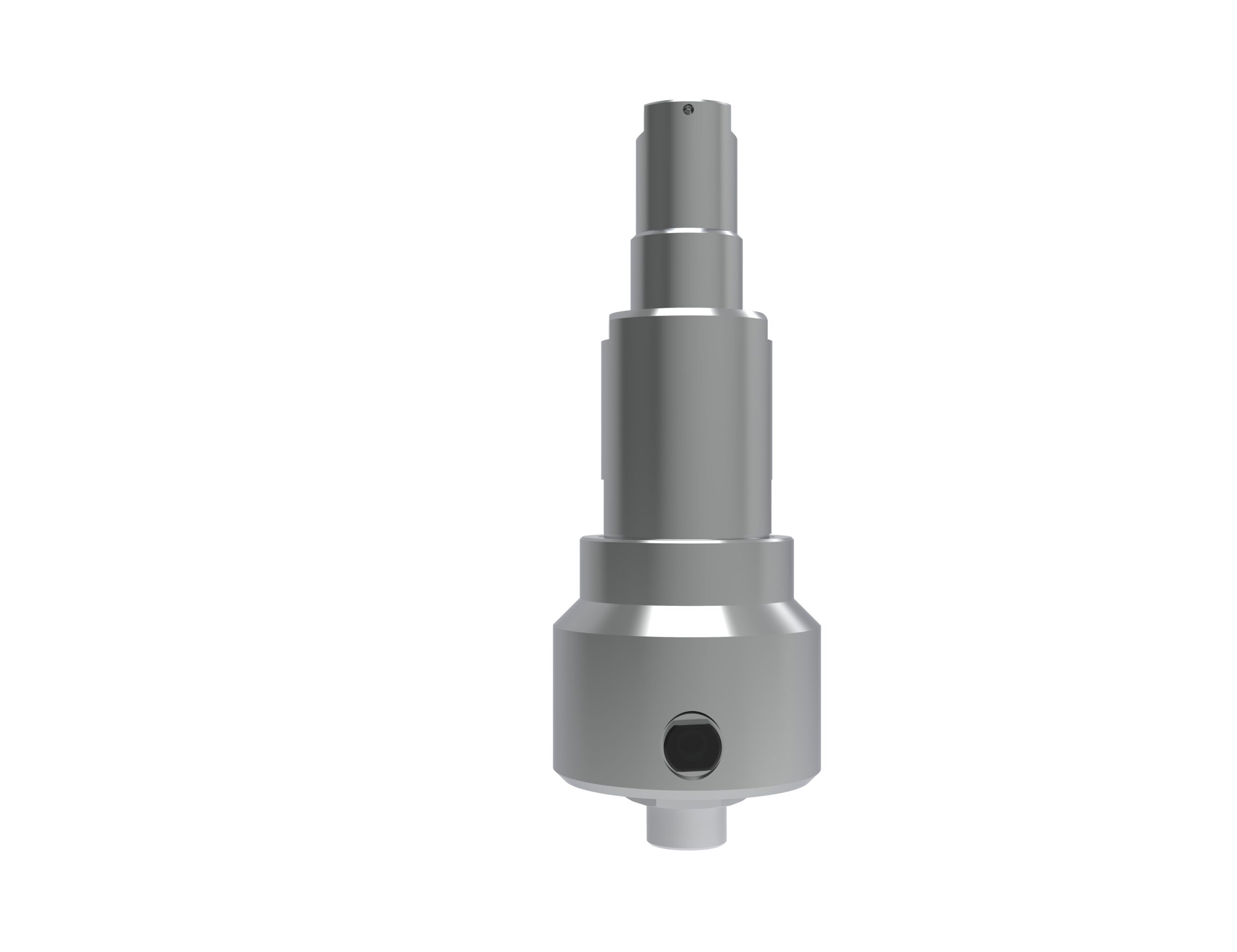

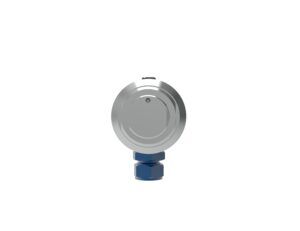

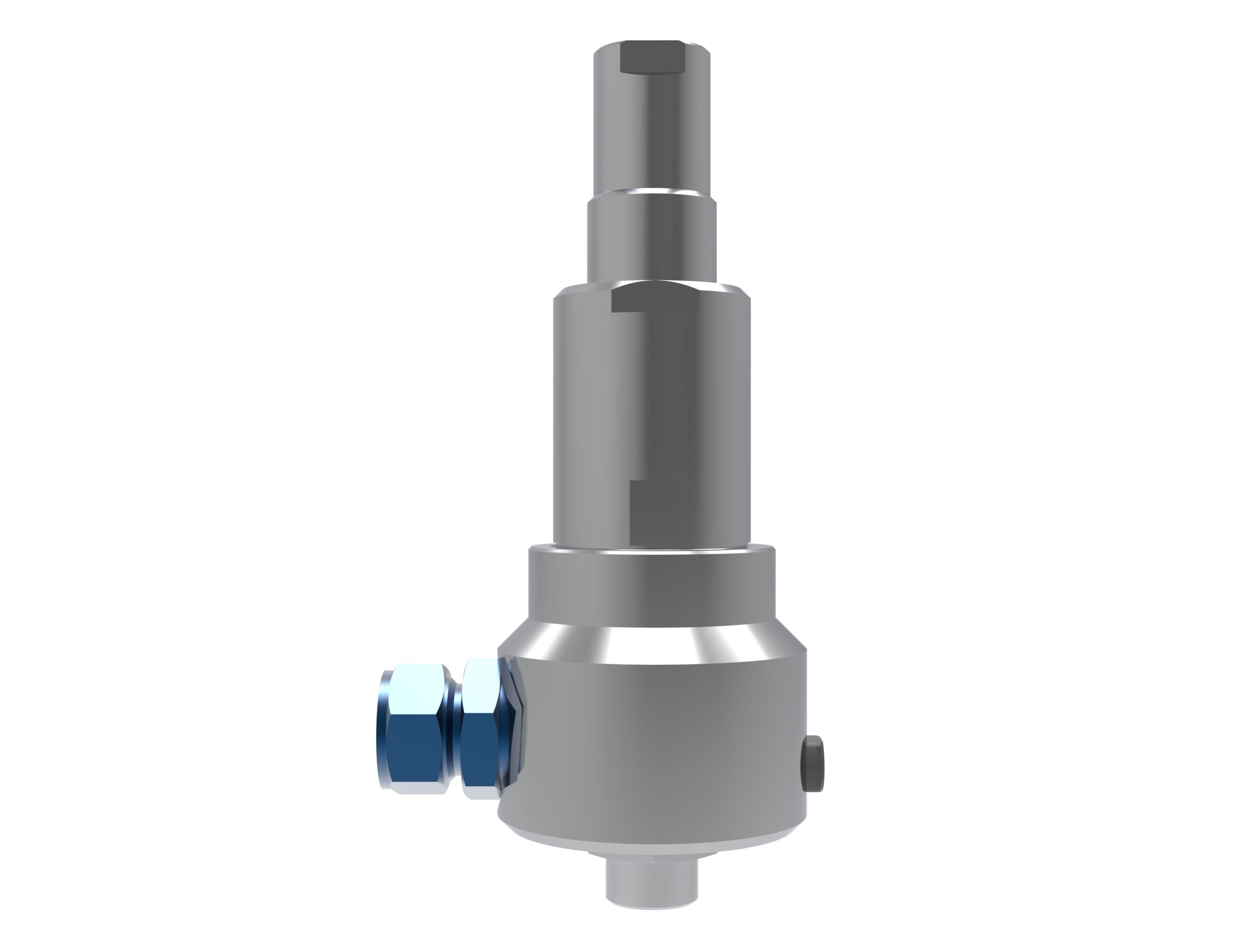

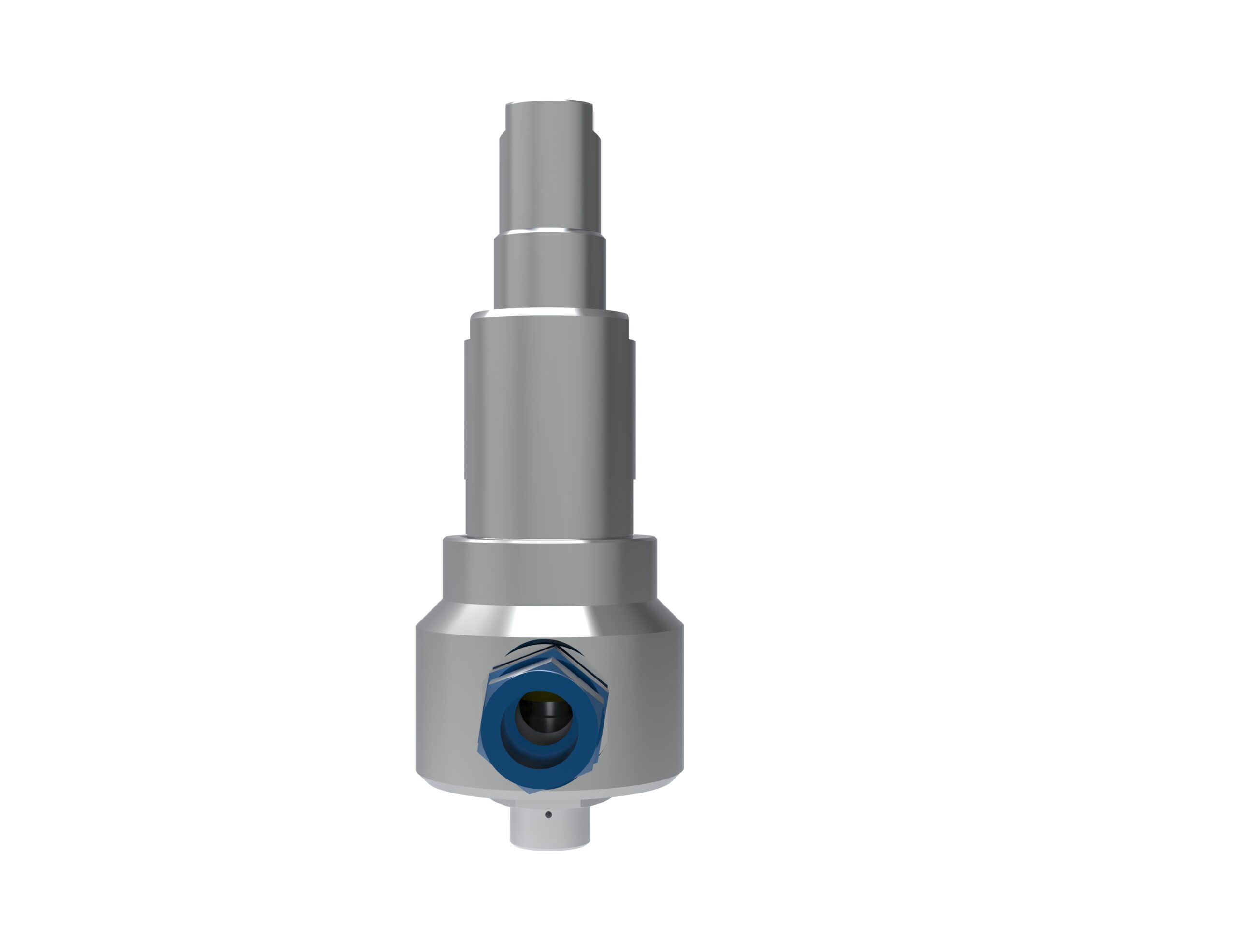

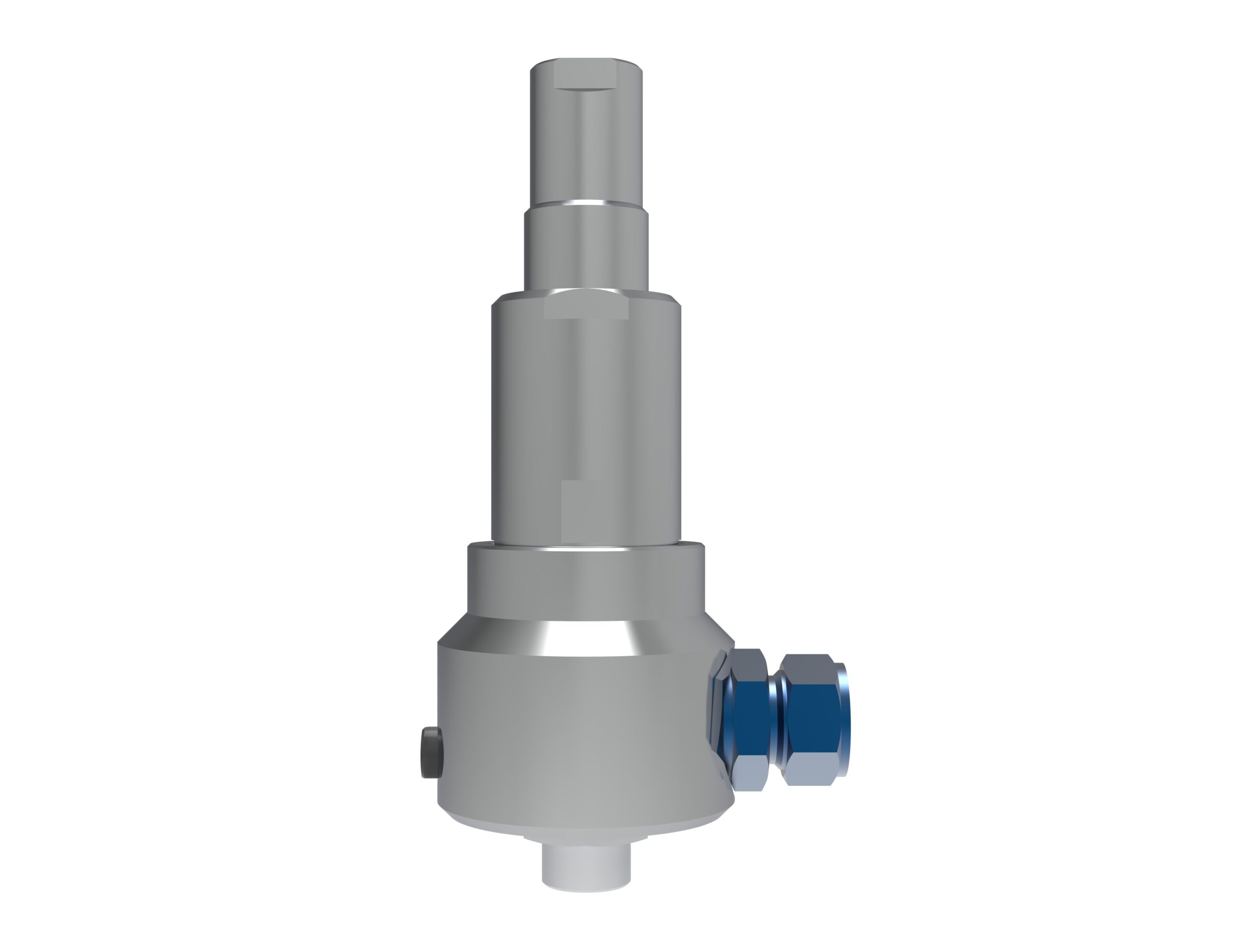

H2Star
TFT France provides a comprehensive range of Sarasin-RSBD® Spring-loaded for use of Hydrogen where essential protection is needed against overpressure scenarios.
H2Star is designed with specific polymers to withstand ultra-high pressure and keep its tightness, avoiding blistering effects related to the compression and decompression phases. Its material is resistant to hydrogen embrittlement & environmental corrosion. Its reduced capacity protect against gas explosure while valve is relieving.
SIZE RANGE & DIMENSIONS
- Inlet sizes : 3/8” (10mm) or 9/16” (15mm) (3/4” as a limit)
- Inlet ratings : MP Cone & Thread
- Orifice sizes : 2 orifice size – [B] to [D]
DESIGN STANDARDS
- PED 2014/98/UE Fugitive Emissions as per ISO 15848-1
TEMPERATURE RANGE
- -196°C (-320°F) to +538°C (+1000°F)
MATERIALS
- SA479 Gr. 316L
APPLICATIONS
- Hydrogen
OPERATING RANGE
- Set pressure up to 15 000 psig (1035 barg)
