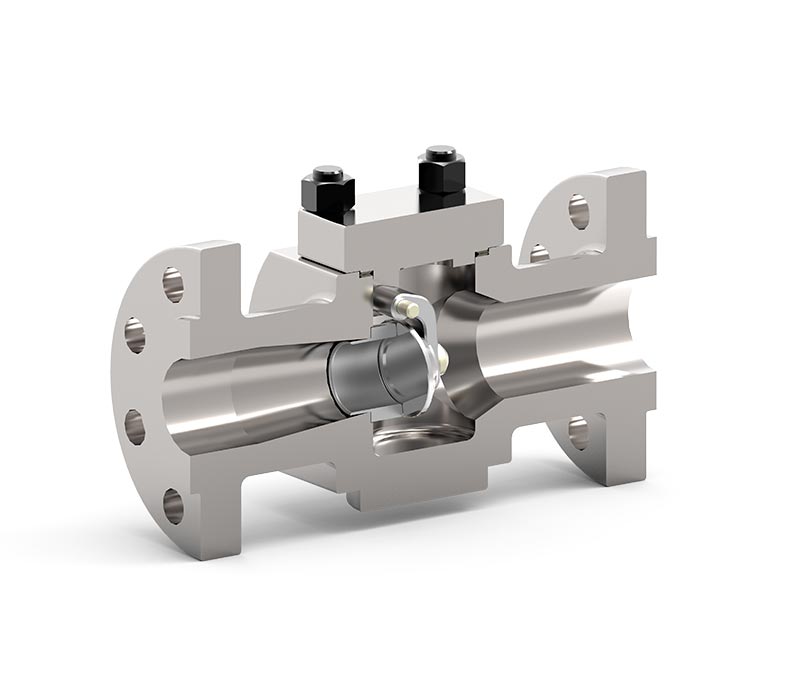

• Red Point Swing Check Valve

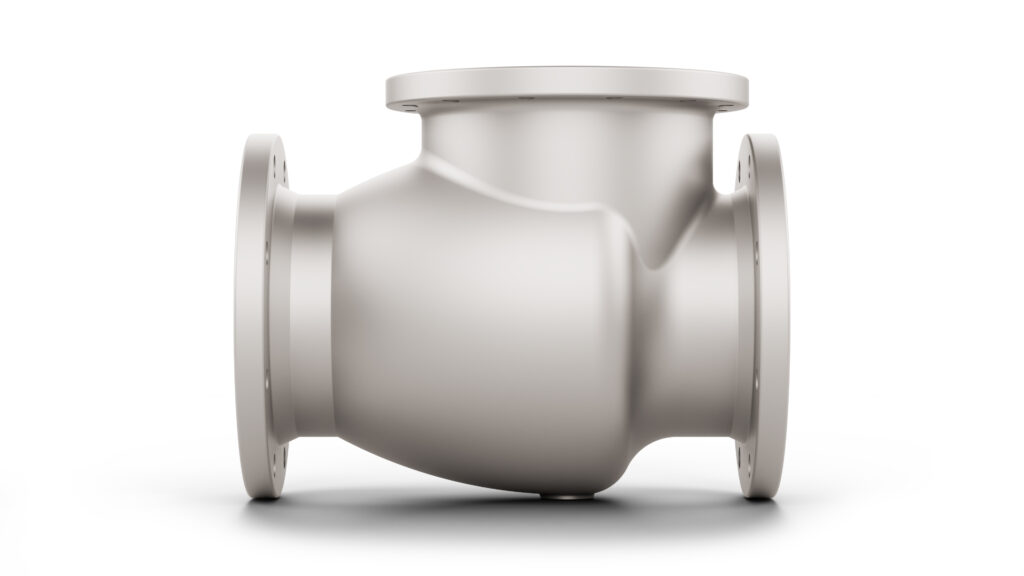

  • Swing Check Valves - Side View

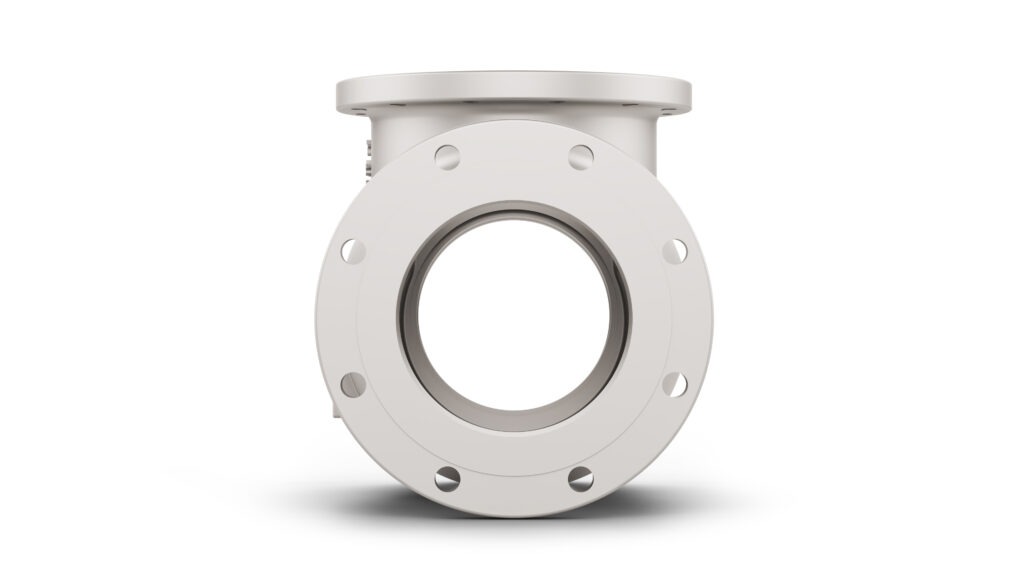

  • Swing Check Valves - Side View 1

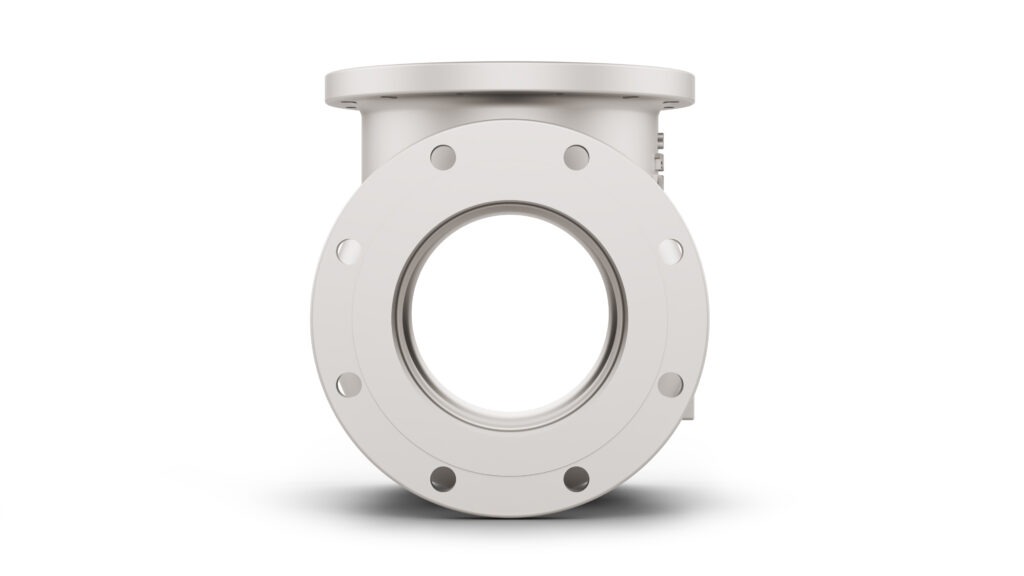

  • Swing Check Valves - Side View 2

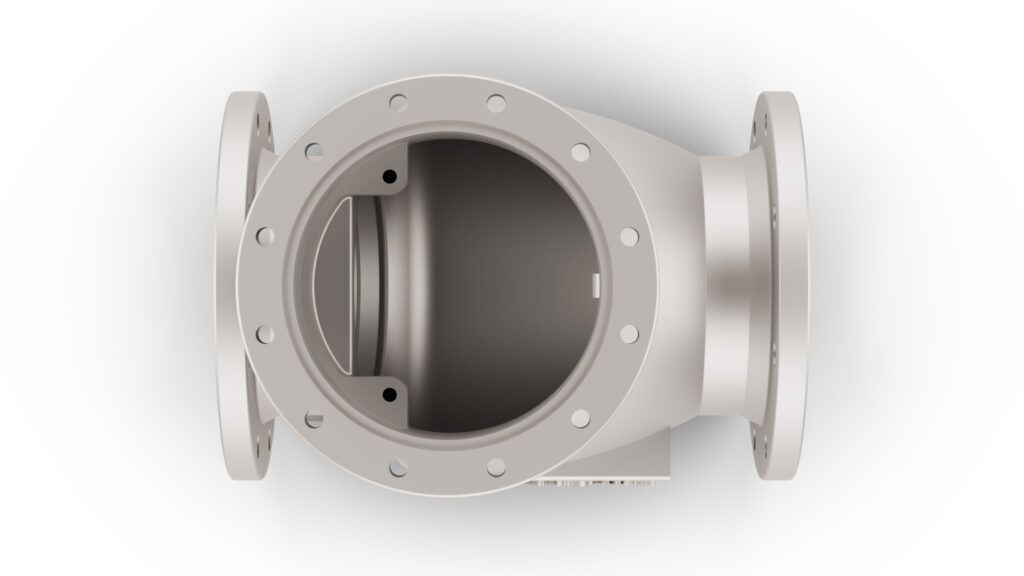

  • Swing Check Valves - Verticle View

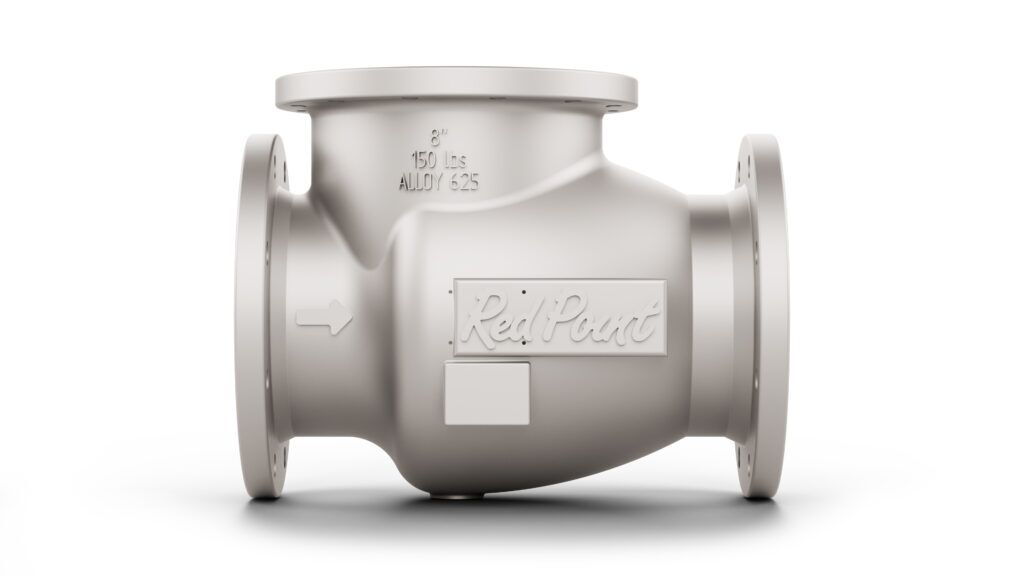

  • Swing Check Valves

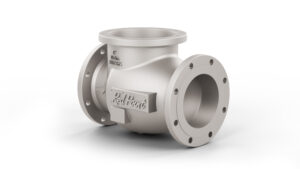

  • Swing Check Valves - Perspective View

Red Point®

Swing Check Valves

Swing Check Valves from Red Point® can be deployed for a wide variety of applications in the oil & gas and petrochemical industries when high quality, reliable valves are required.

Our swing check valves are available as forged or cast valves featuring exotic material options with short delivery times.

Design

  • Bolted-Welded Cover
  • Wafer
  • Lug
  • Tilting Disc

Options

  • Pressure seal cover
  • Soft and metal seat
  • Drain tapping point
  • Bypass

Design & testing

  • All available international standards according to API, EN, ISO

Size & bore

Forged Valves:

  • ANSI 1” – 6”
  • DN 25 to DN 100



Cast Valves:

  • ANSI 6” to 16”
  • DN 10 to DN 400

End connections

  • Flanged
  • BW
  • SW
  • THR
  • HUB

Design features

  • Springless design

Installation position

  • Horizontal and/or Vertical

Pressure range

Forged Valves:

  • ANSI 125 to 4,500 lbs
  • ISO PN 10 to PN 640



Cast Valves:

  • ANSI 125 to 2,500 lbs
  • ISO PN 10 to PN 400

  • Disc/Obturator and seats are grinded and lapped to a mirror finish and tightly guided to prevent dragging and seat damage
  • Body and cover joint accurately machined with high surface finish sealing chamber
  • Low emission valve technology optimized for extended service life
  • Seal ring construction for excellent sealing
  • Full open, disc out of flow
  • Pressure seal cover design available
  • Low pressure cracking
  • High flow capacity, minimizes flow velocity

Swing check valves by Red Point® can be deployed for a wide variety of applications in the oil & gas and petrochemical industries when high quality, reliable valves are required. A few example applications include:

  • High-temperature services
  • High-pressure oxygen, nitrogen, or hydrogen
  • Solids handling (powders, fines, dust, and catalysts)
  • Polyethylene or polypropylene
  • Coal conversion & gasification
  • Thermal fluids
  • Separator, filter, and drying systems
  • Compressor stations
  • On/off isolation service
  • Oil & gas manifolds

Nickel Alloys (Monel®, Inconel®, Hastelloy®, Incoloy®), Duplex and Super Duplex, Carbon Steel and Low Temp Carbon Steel, Low Alloy Steel, Stainless Steel, Titanium, Zirconium
