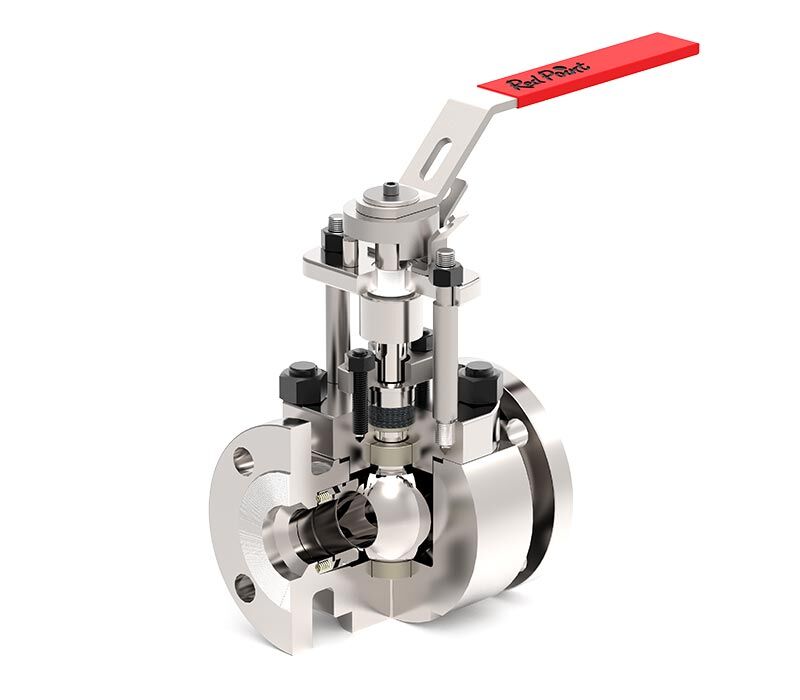

• Red Point Ball Valve Trm Top Entry Dn50 150lbs

Red Point®

Top Entry Construction Ball Valves

Red Point’s top entry soft seated ball valves can be deployed for a wide variety of applications in the oil & gas, petrochemical, mining, and power industries when high quality, reliable valves are required.

Our top entry soft seated ball valves are available as forged or cast valves featuring exotic material options with short delivery times

Design

  • Top Entry
  • Trunnion
  • Floating

Design standard

  • ASMEB16.34
  • EN12516
  • API608
  • API6D
  • API6A
  • BS5351
  • DIN3357
  • JIS2071
  • MSS SP72

End Connections

  • Flanged
  • BW
  • SW
  • THR
  • HUB

Operated

  • Lever, Gear, Actuator (pneumatic – electric – hydraulic)

Fire Safe

  • Design and Certified API607, API6Fa, ISO10497

Mounting Pad

  • ISO5211 – Top Flange

Size & bore

Forged Valves:

  • ANSI 1” – 6”
  • DN 25 to DN 100

Cast Valves:

  • ANSI 6” to 16”
  • DN 10 to DN 400

Seats

  • Soft Seated

Construction

  • One piece body (top entry)
  • Anti static device
  • Blow-out proof stem

Face to Face

  • ASME B16.10
  • EN558
  • JIS B2002
  • MSS SP72

Design & Testing

  • All available international standards according to API6D, API598, EN12266, MSS SP82, ISO5208, API6A

Fugitive Emission

  • ISO EN15848-1
  • ISO EN15848-2

Options

  • Lipseals
  • Single or Double Piston Design (SPE-DPE)
  • Injection Sealing Seat & Packing
  • Local CRA Overlay
  • Heating Jacket
  • Drain & Vent
  • AED Seals
  • DBB- DIB1 – DIB2 as per API6D
  • 2-way, 3-way, 4-way, mechanically linked

Pressure range

Forged Valves:

  • ANSI 125 to 4,500 lbs
  • ISO PN 10 to PN 640



Cast Valves:

  • ANSI 125 to 2,500 lbs
  • ISO PN 10 to PN 400
Ball seat design

Maintains tight contact between ball/seat regardless of valve installation orientation.
Low coefficient of friction
Excellent sliding and running properties
Optimal selection of flexibility and stiffness of both ball and seat rings
Thermoplastic seat materials Graphite, Devlon, TFM, PTFE, RPTFE, PEEK, POM, PCTFE, Nylon

Hard facing and soft seat options

To prevent wear and tear controlling physical and chemical characteristics, Red Point uses several qualified surface treatment techniques to increase the service lifetime of valves and its components. Depending on the material in question, pressure/temperature and service conditions a few techniques can be used. These surface treatments, in combination with a high class design, entered to your specific process conditions, will result in a high quality valve, which guarantees a long cycle life.

HVOF like Chromium- and Tungsten Carbide.
Chromium- and Titanium Oxide, Nitriding

Thermoplastic seat materials Graphite, Devlon, TFM, PTFE, RPTFE, PEEK, POM, PCTFE, Nylon

Red Point’s top entry soft seated ball valves can be deployed for a wide variety of applications in the oil & gas, petrochemical, mining, and power industries when high quality, reliable valves are required. A few example applications include:

  • High-cycle and switching services
  • Emergency shutdown valves
  • High-integrity pressure protection system
  • High-pressure oxygen, nitrogen, or hydrogen
  • Polyethylene or polypropylene
  • Oil & Gas services
  • Hydrogen
  • Food/Pharma
  • Toxic/Lethal service
  • Autoclave services
  • Coal conversion & gasification
  • Separator, filter, and drying systems
  • Compressor stations

Nickel Alloys (Monel®, Inconel®, Hastelloy®, Incoloy®), Duplex and Super Duplex, Carbon Steel and Low Temp Carbon Steel, Low Alloy Steel, Stainless Steel, Titanium, Zirconium
