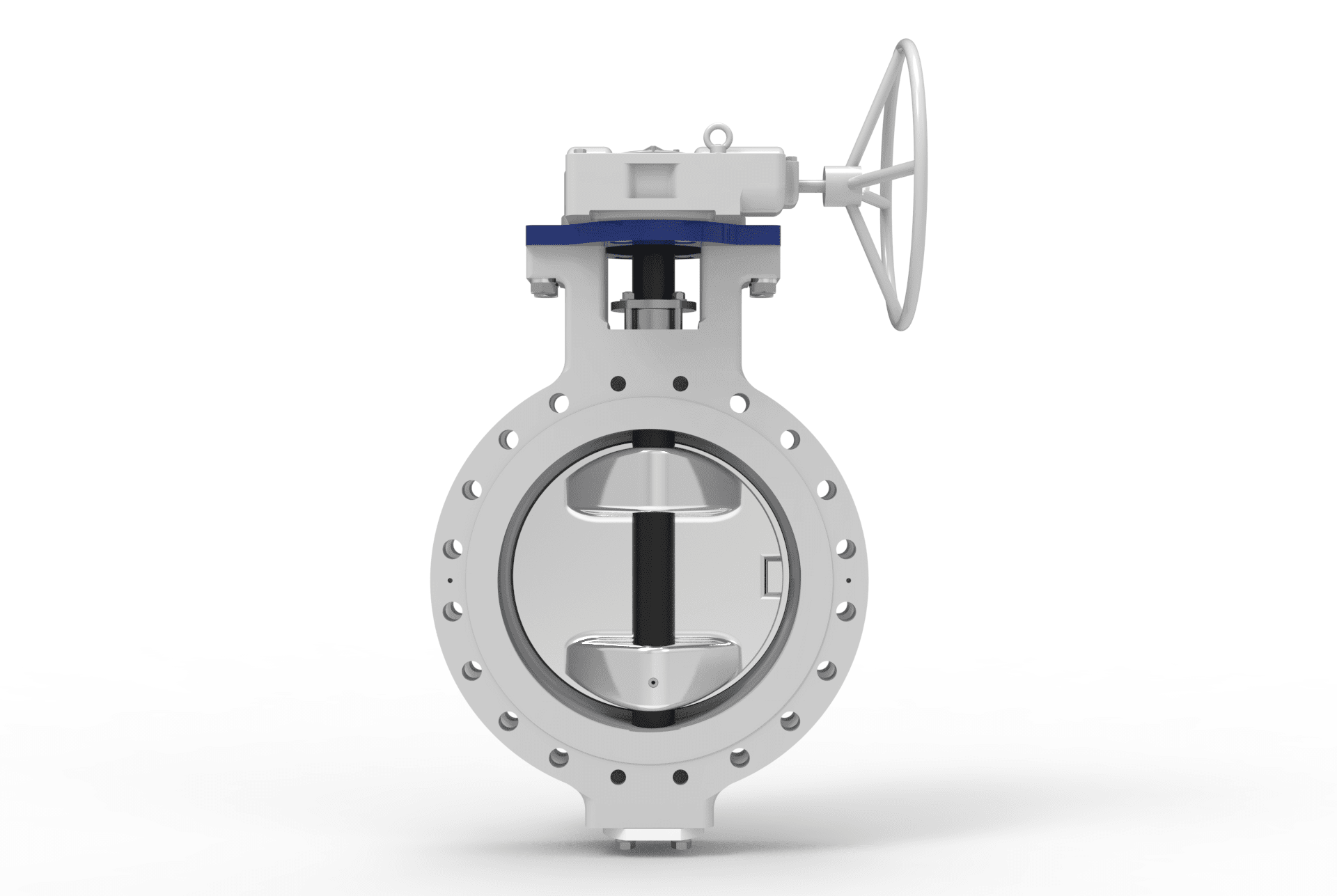

• TRICENTRIC® TRIPLE OFFSET BUTTERFLY VALVES front view

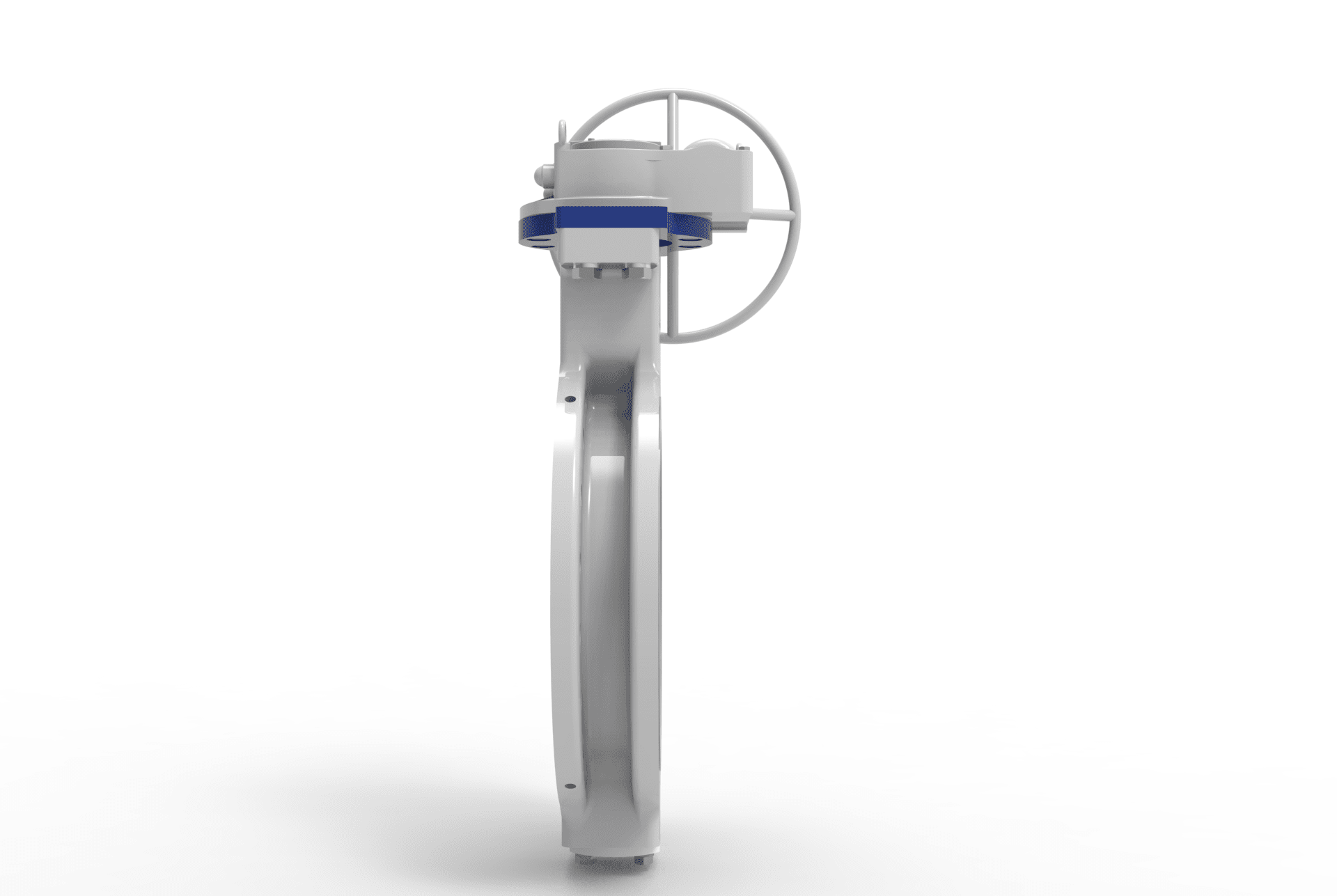

  • TRICENTRIC® TRIPLE OFFSET BUTTERFLY VALVES right side view

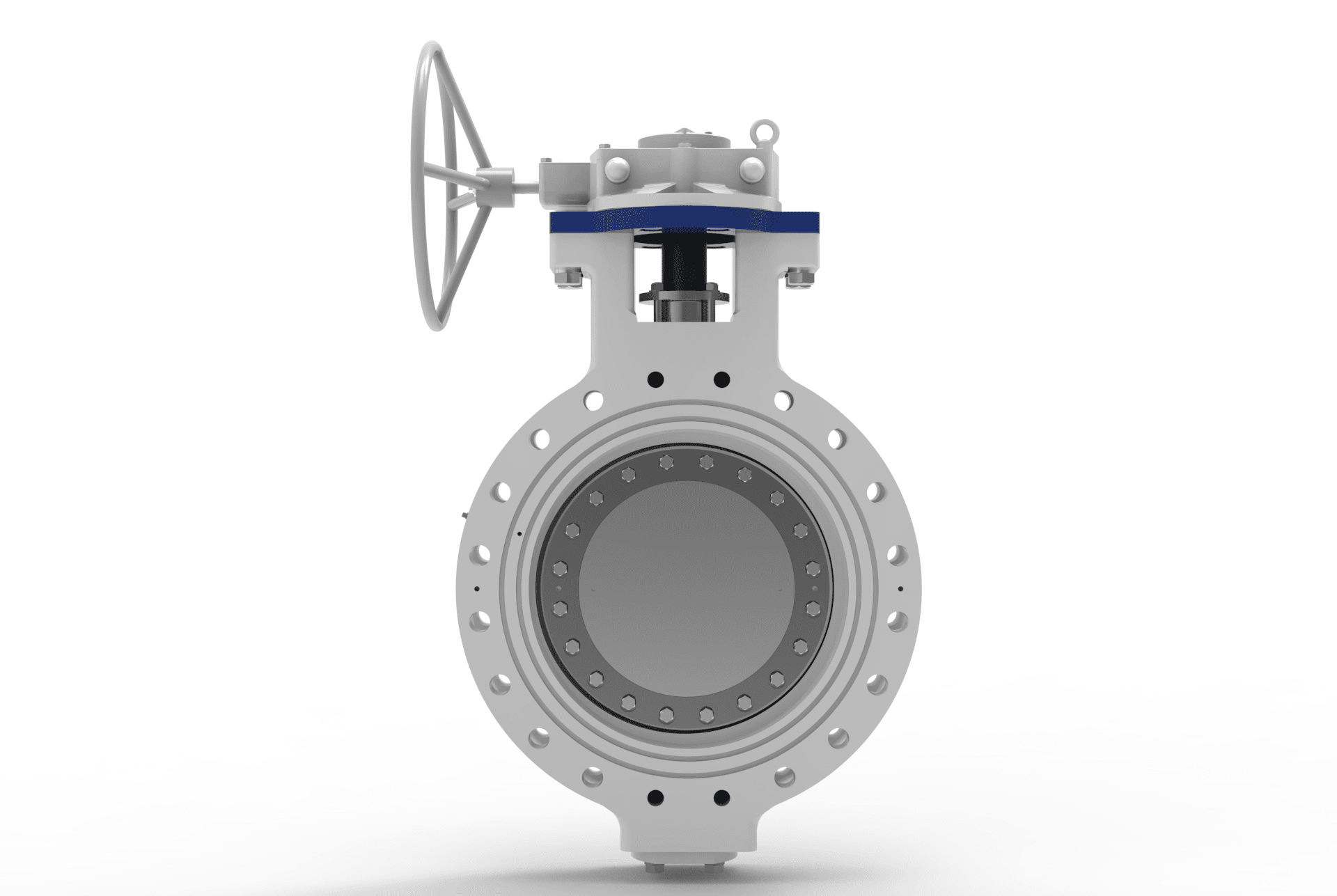

  • TRICENTRIC® TRIPLE OFFSET BUTTERFLY VALVES back view

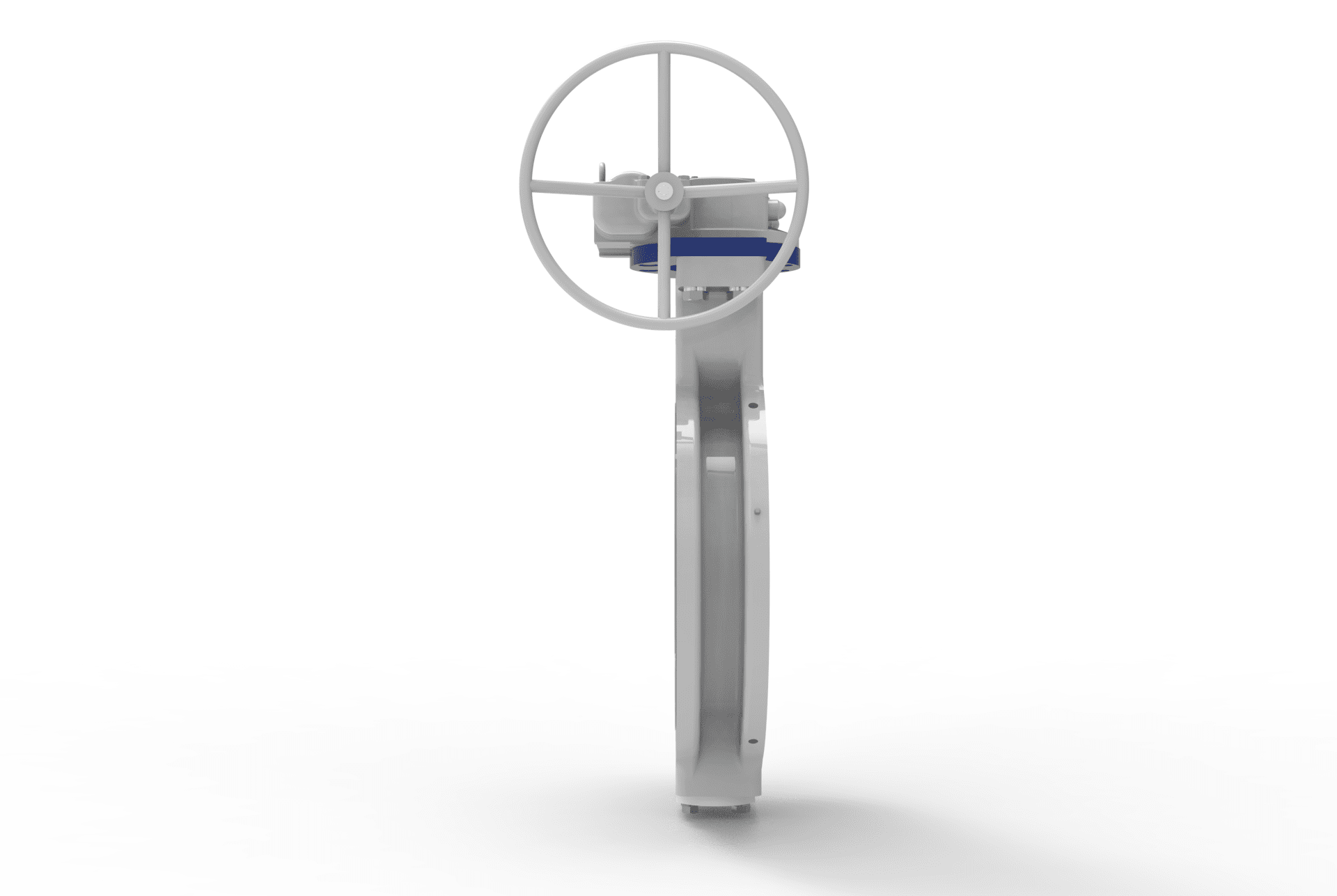

  • TRICENTRIC® TRIPLE OFFSET BUTTERFLY VALVES left side view

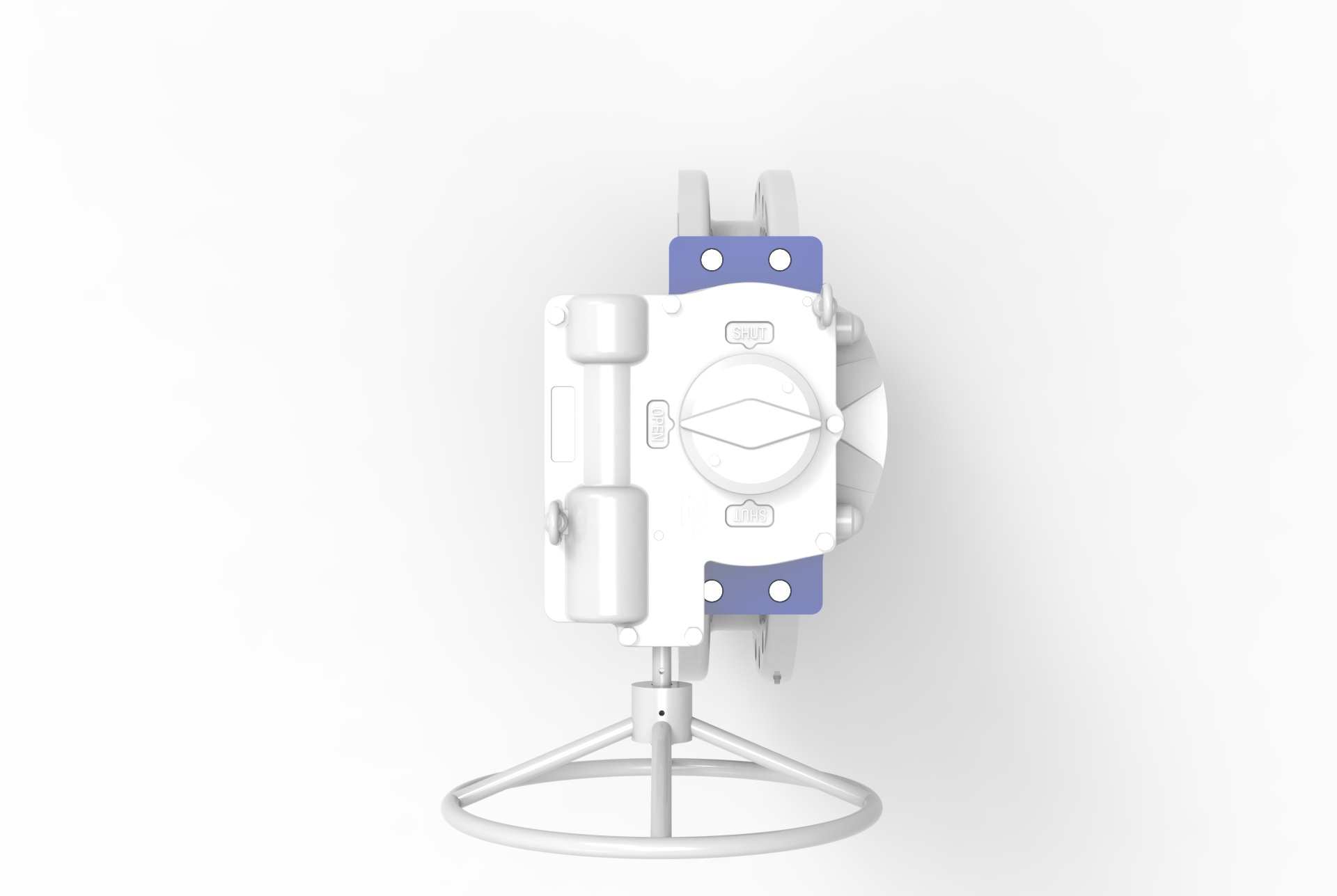

  • TRICENTRIC® TRIPLE OFFSET BUTTERFLY VALVES top view

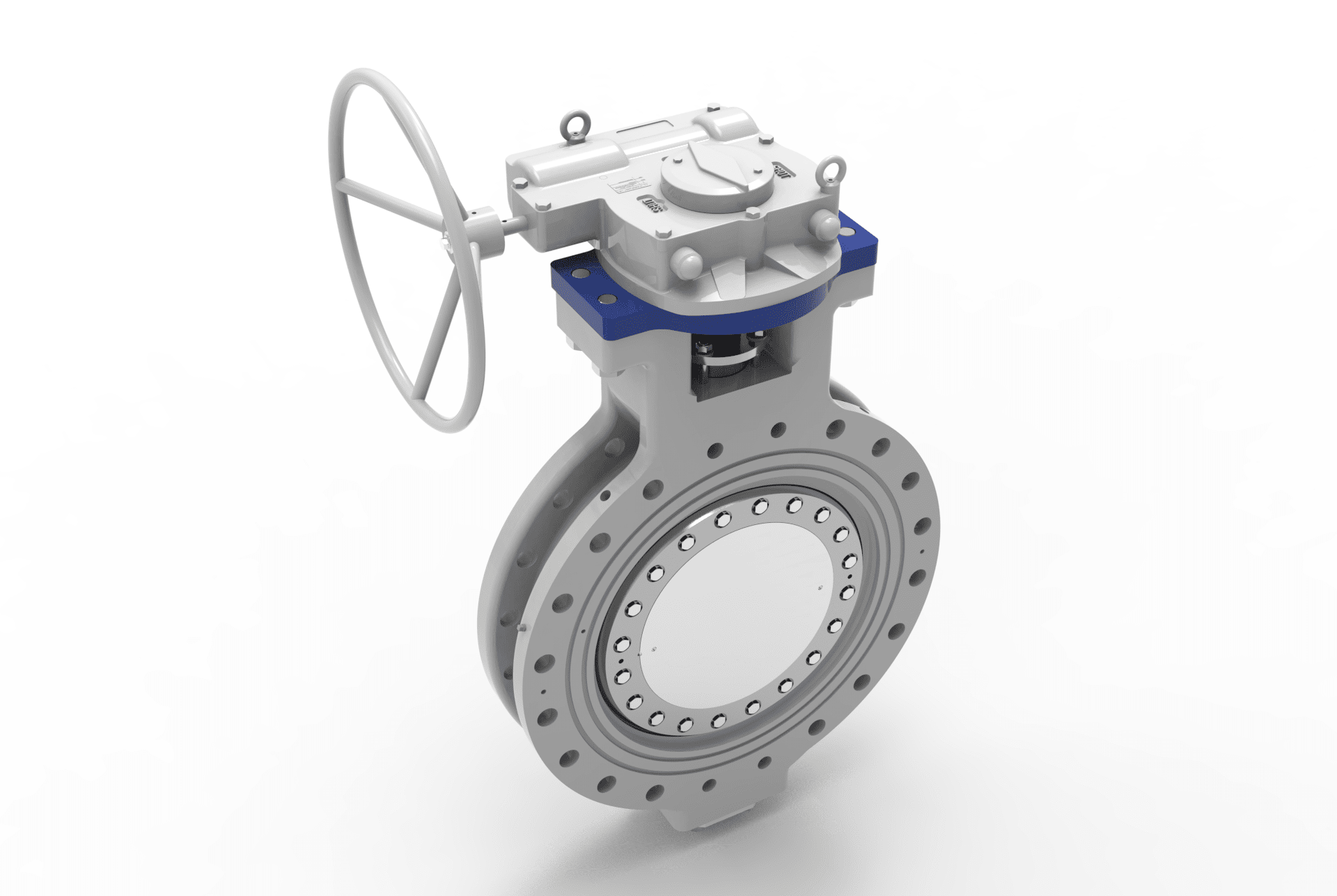

  • TRICENTRIC® TRIPLE OFFSET BUTTERFLY VALVES right angled back view

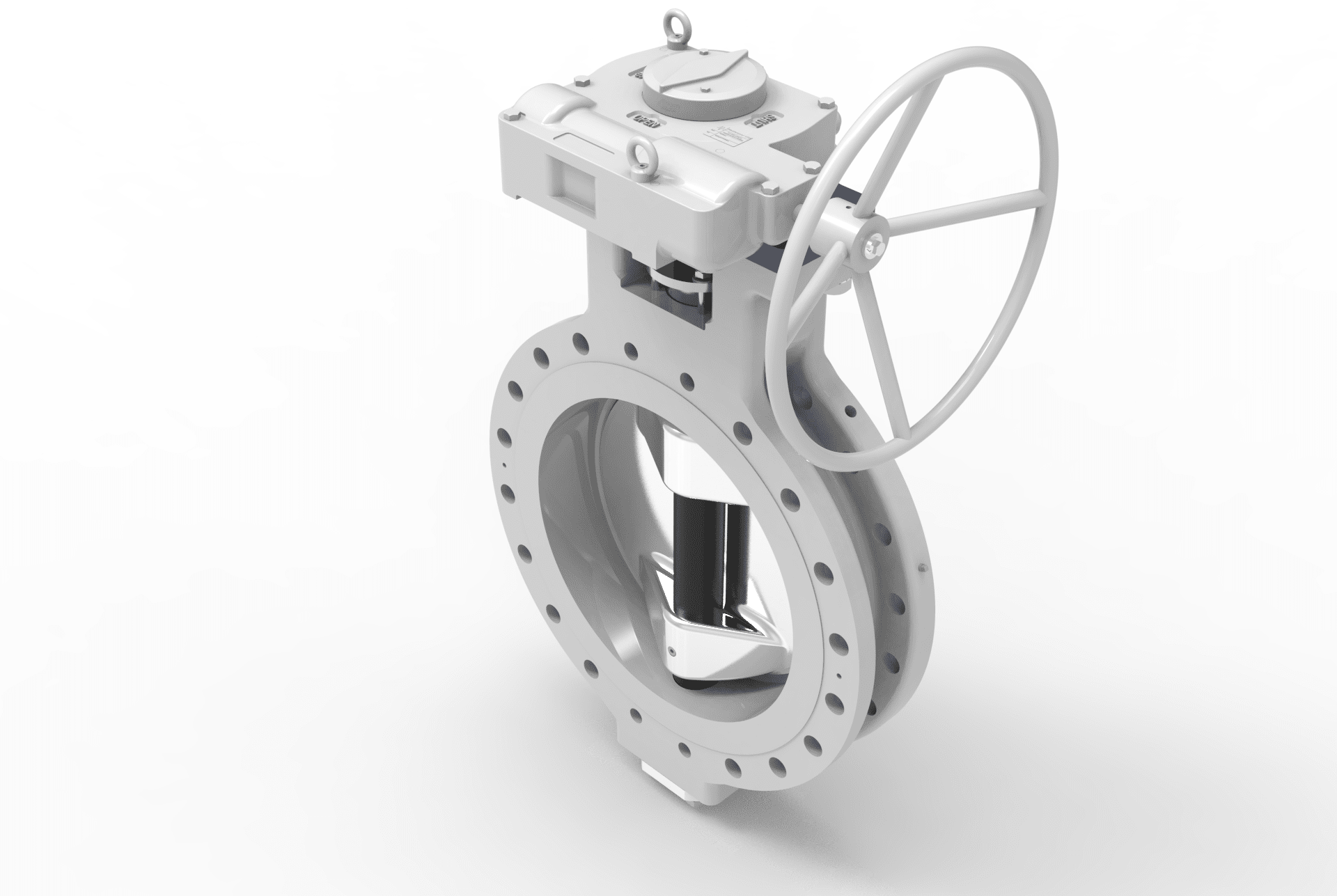

  • TRICENTRIC® TRIPLE OFFSET BUTTERFLY VALVES left angled front view

Tricentric®

Triple Offset Butterfly Valves

The Tricentric® brand is recognized in the market for excellent flow and control characteristics, tight sealing capabilities, and dependability in a wide range of applications.

Tricentric® Metal Seated Valves perform favorably when compared to conventional resilient seated and high performance butterfly valves over all services ranges. Tricentric® Triple Offset Butterfly Valves incorporate 3-way eccentricity. The metal seat is capable of a very tight seal at temperatures up to 1,500ºF.

APPLICATIONS

  • Isolation & control
  • High temperature
  • Cryogenics
  • Extraction steam isolation
  • Oil & Gas isolation & control
  • Nuclear containment
  • Service water
  • Condensate circulating water
  • Harsh service

KEY FEATURES & BENEFITS

  • Triple offset metal seat design
  • Long life frictionless seating
  • Bi-directional tight sealing
  • Excellent throttling characteristics
  • Robust shaft design to support full range of actuator torques

DESIGN STANDARDS

  • ASME B16.34, API 609 5th Edition, ASME Sec III NC, ND (Nuclear)

PRESSURE CLASS RANGE

  • ASME 150 – 600

SIZE RANGE & DIMENSIONS

  • 3 – 96 inches (75 – 2,400 mm)

TEMPERATURE RANGE

  • -400ºF – 1,500ºF

MATERIALS

  • Cast or plate material in carbon steel, alloy steel, stainless steel, CN3NM
