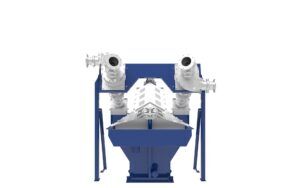

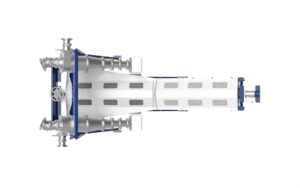

WEMCO®

Hydrogritter

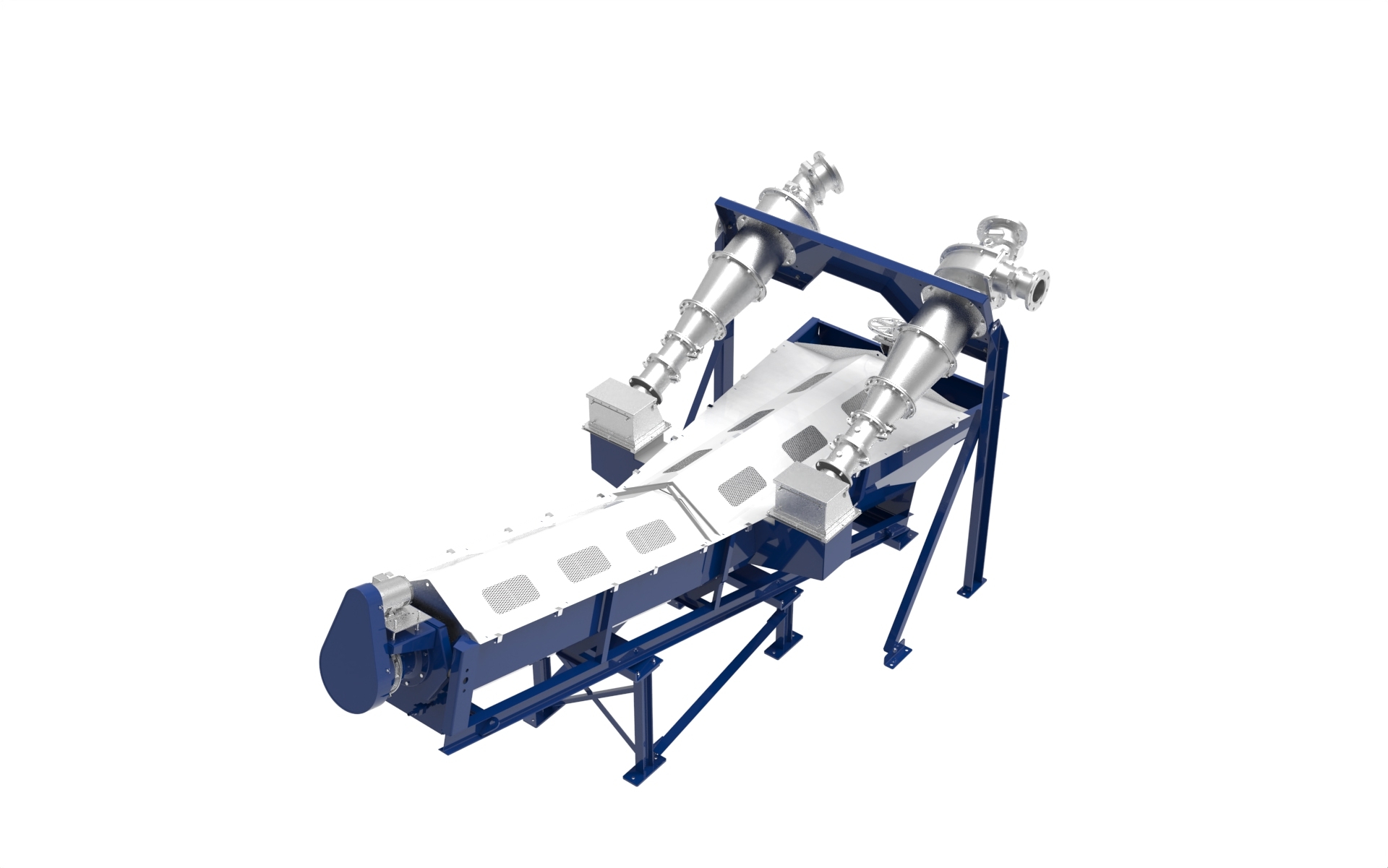

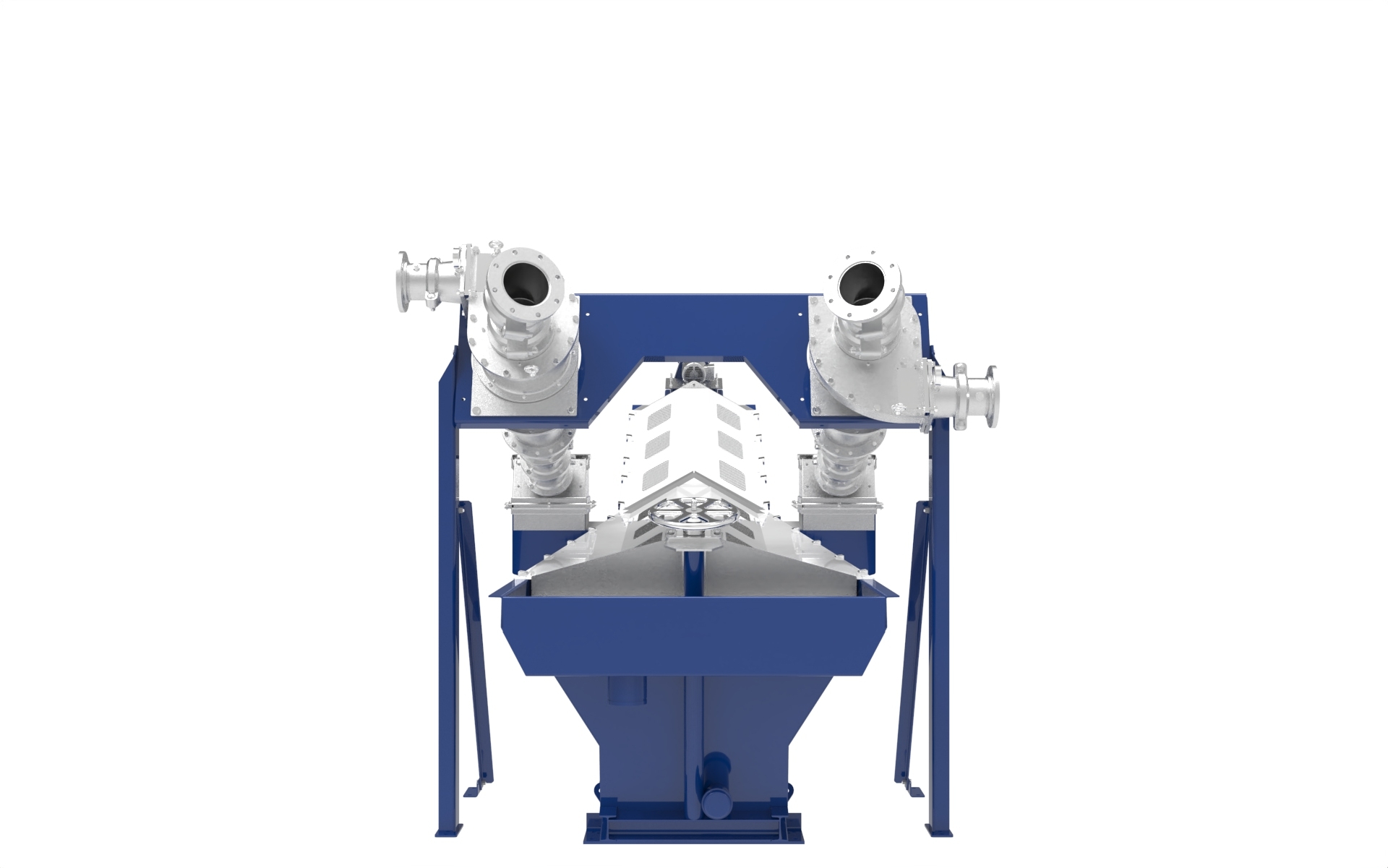

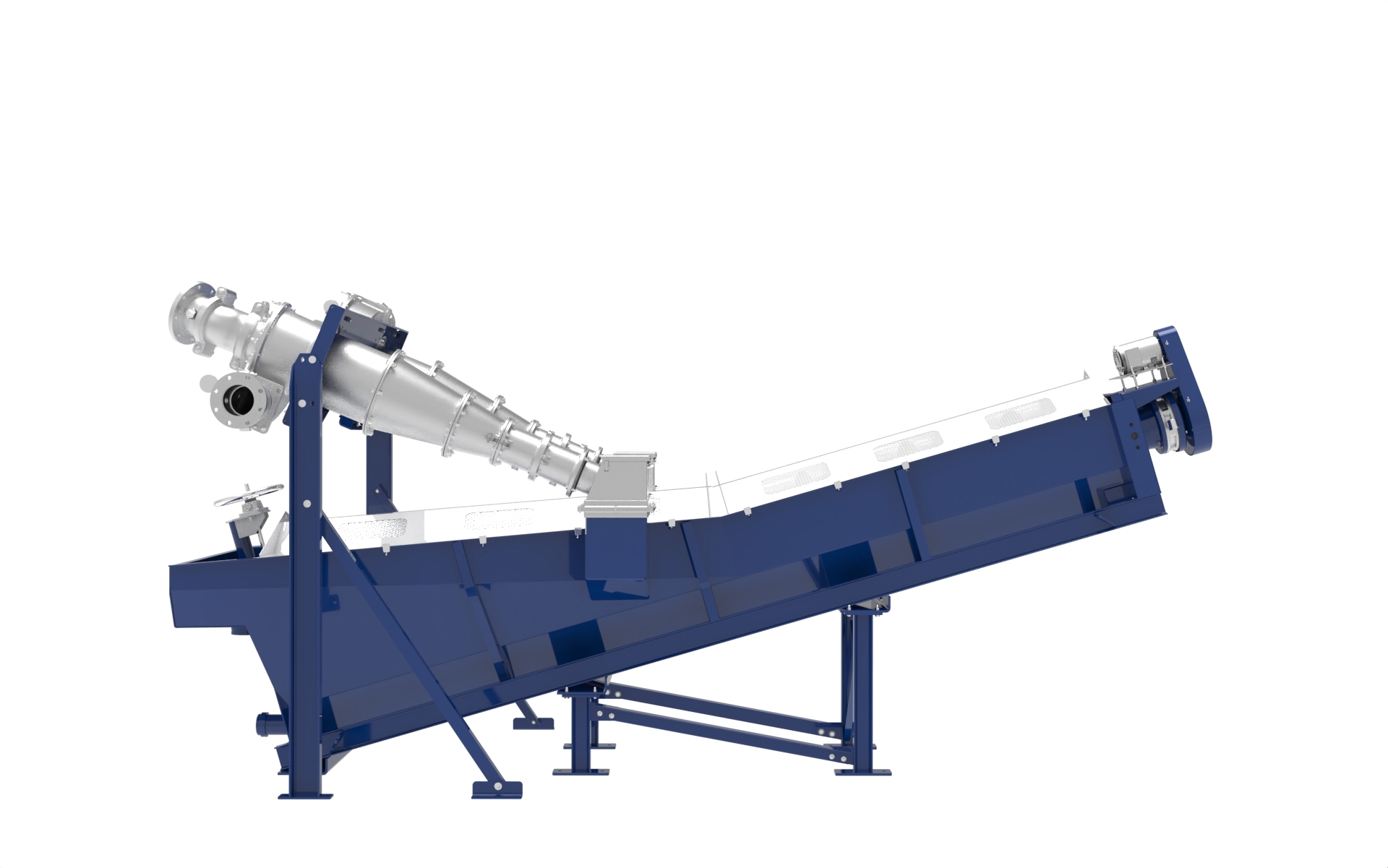

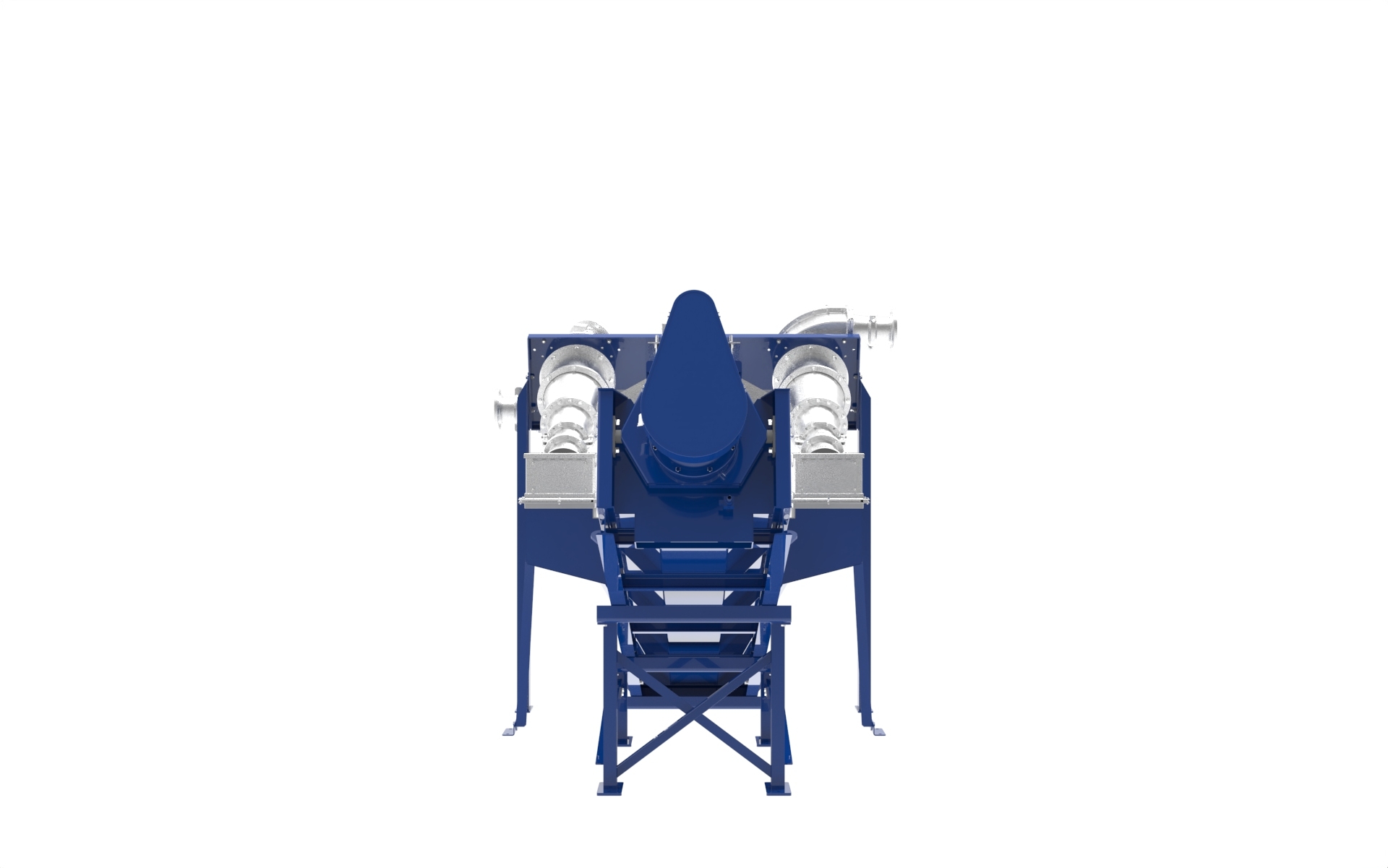

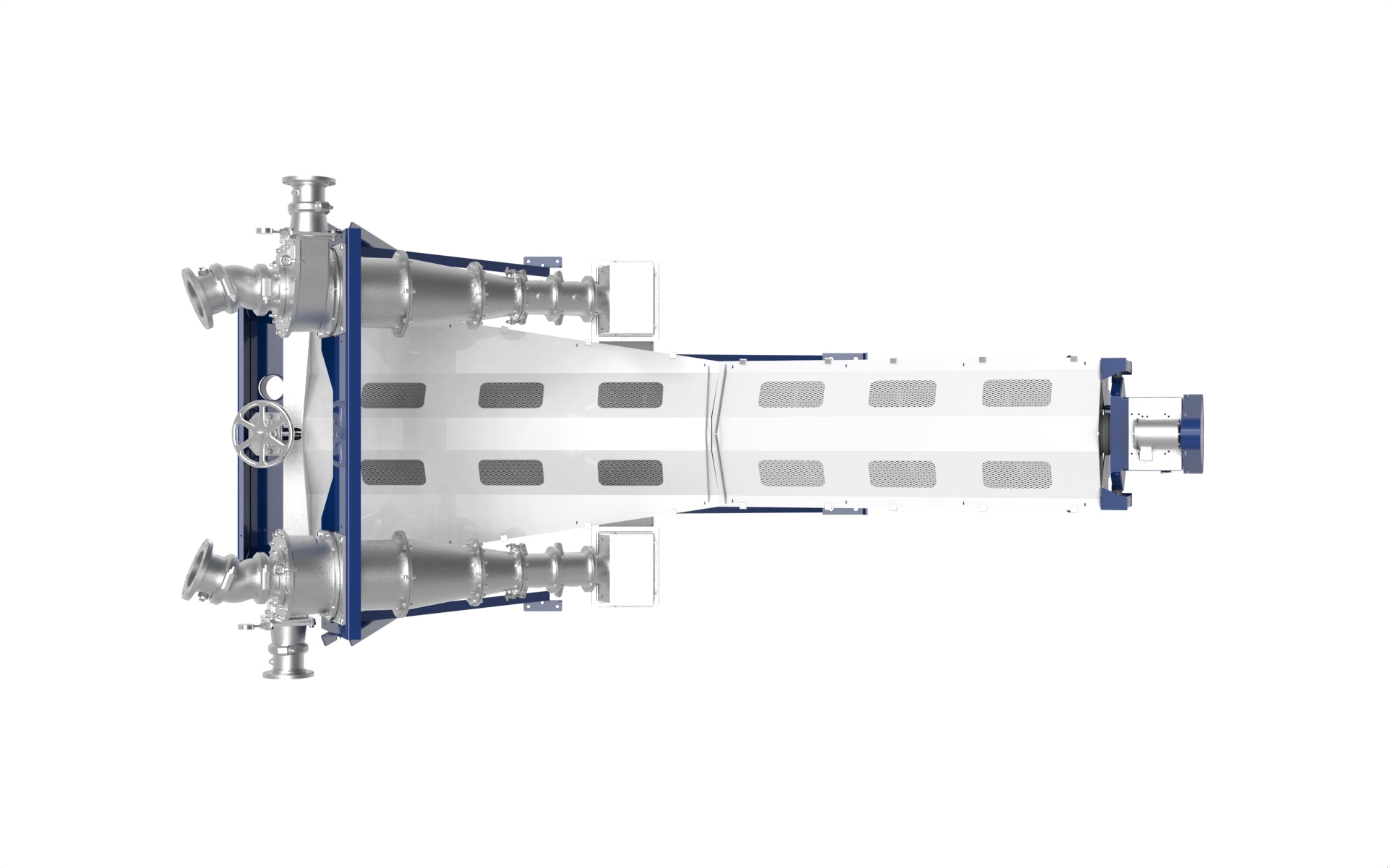

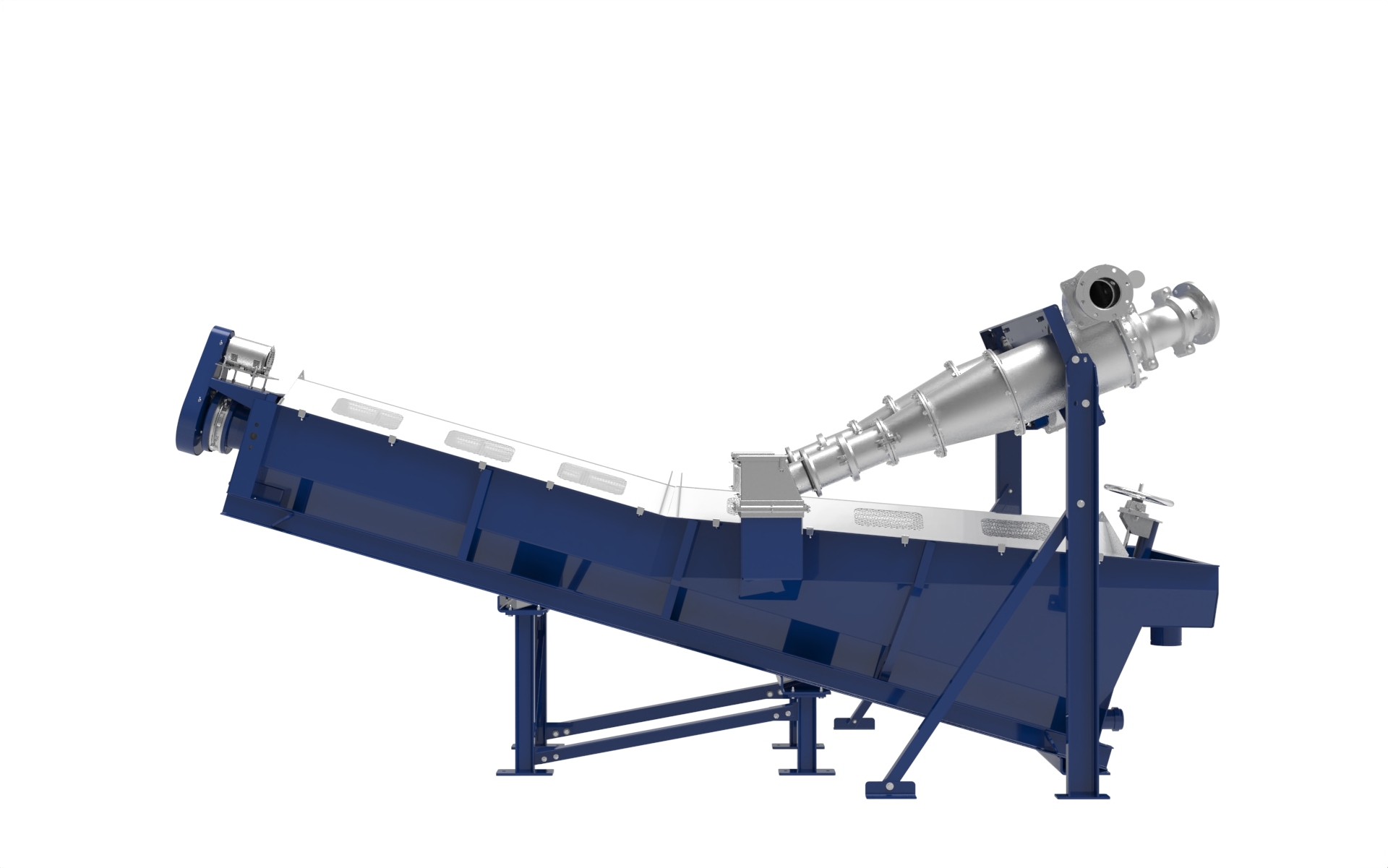

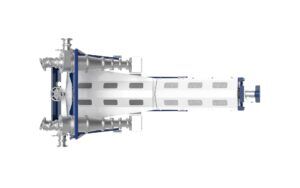

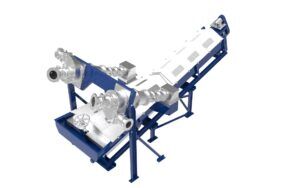

The WEMCO® Hydrogritter is an exceptional grit cyclone and classifier with an enduring operational life of over 25 years.

The WEMCO® Hydrogritter® components are designed as a system to optimize each piece of equipment to consistently produce long-term, high performance grit removal with unmatched reliability, and low operation and maintenance costs. The WEMCO® Hydrogritter system removes and dewaters grit from primary sludge or influent.

KEY FEATURES & BENEFITS

  • Protects downstream equipment from grit damage
  • Downtime and grit removal expense minimized
  • Proven ability to remove fine (150+ mesh) grit
  • Production life of 25+ years
  • One to four cyclones per classifier

CYCLONE CAPACITY FLOW

  • 220 to 1,570 gpm (50 to 357 m³/h)

CYCLONE PRESSURE

  • 5 to 20 psi (.3 to 1.37 bar)

APPLICATIONS

  • Grit removal

SIZE RANGE

  • Hydrogritter: 12, 18, 24, & 30 inch
  • Hydrogritter II: 12 inch

TEMPERATURE RANGE

  • 32ºF (0°C) – 122ºF (50°C)

MATERIALS

  • Steel
  • Stainless steel
  • Galvanized
