WSP™

Non-Clog

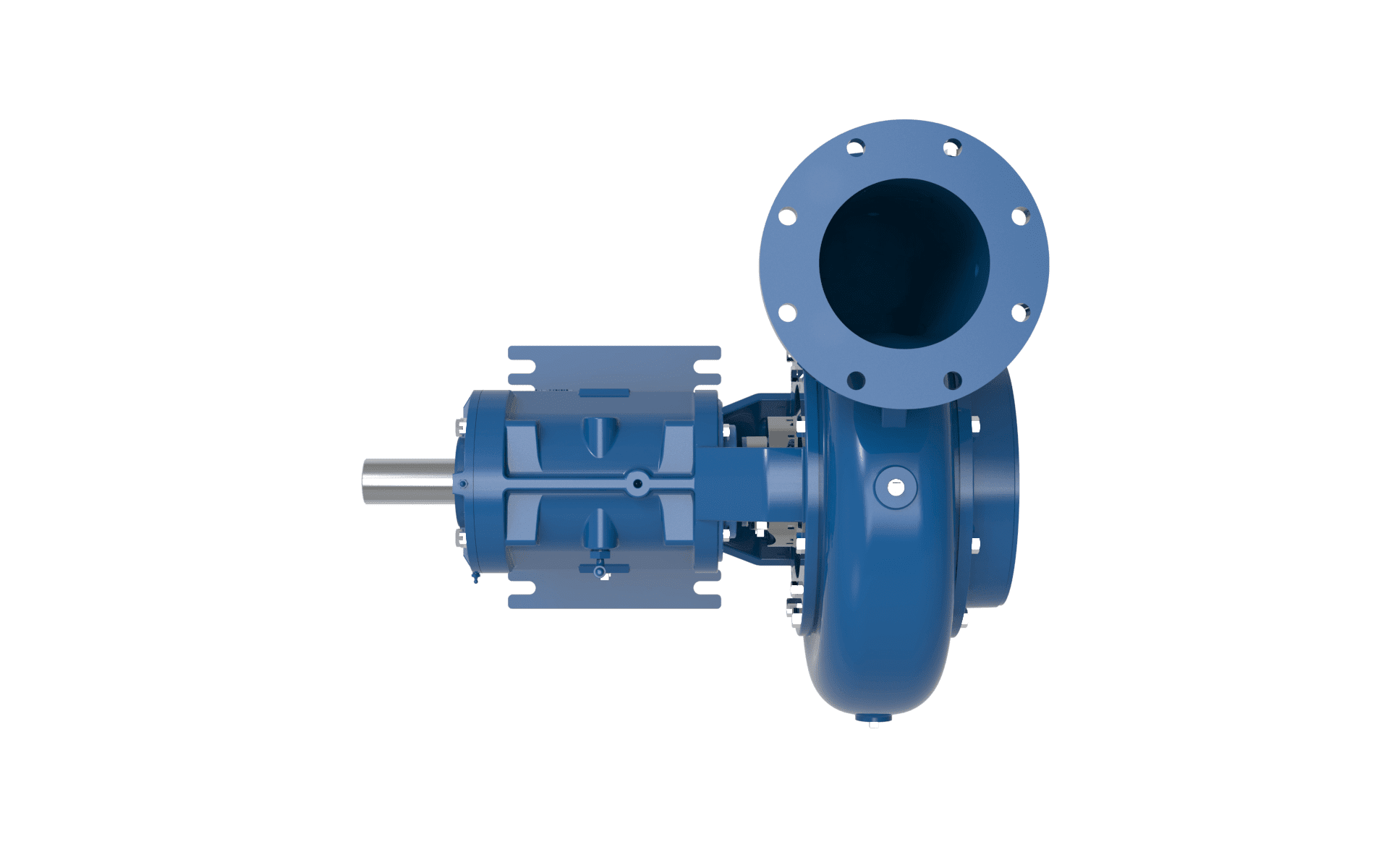

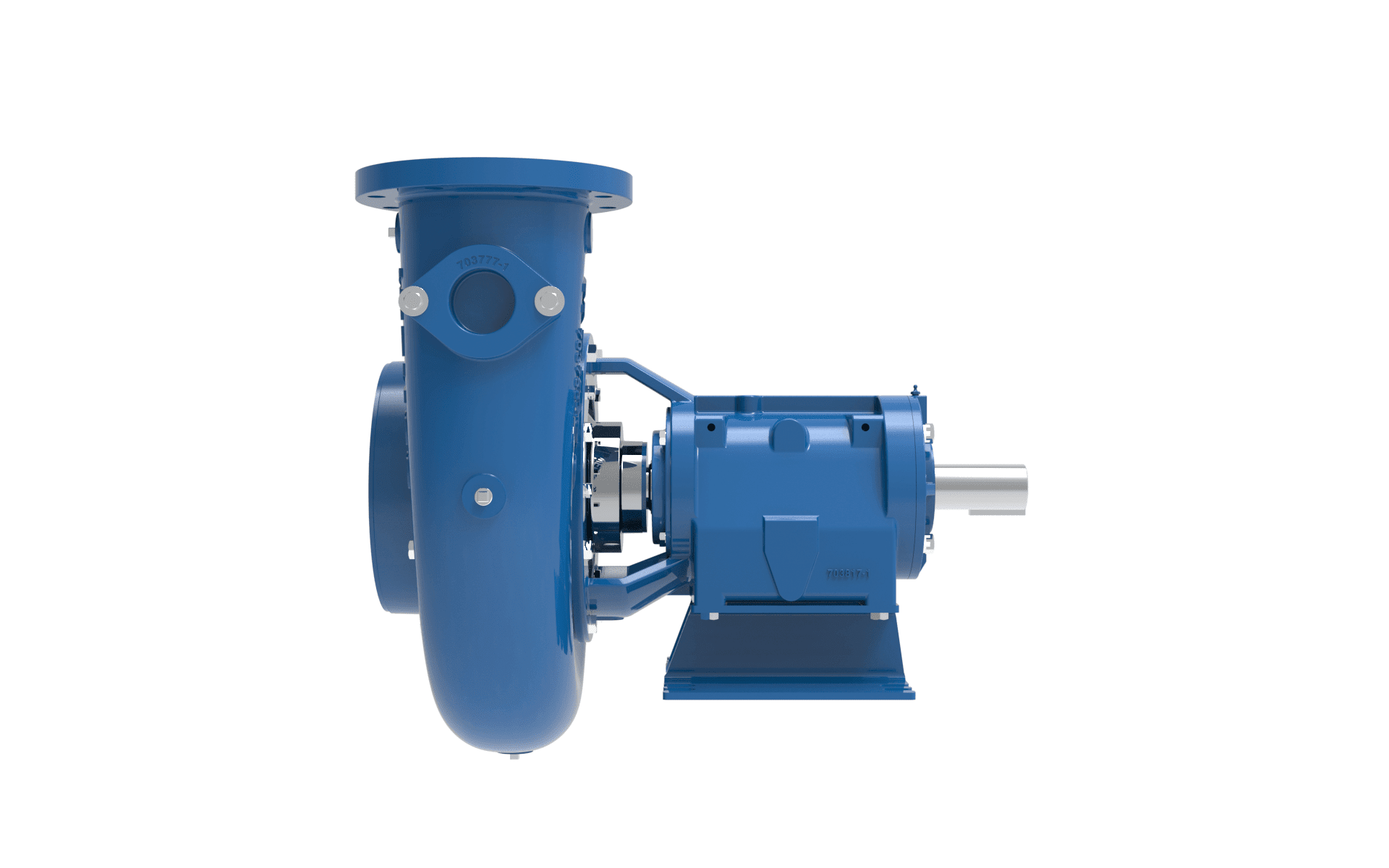

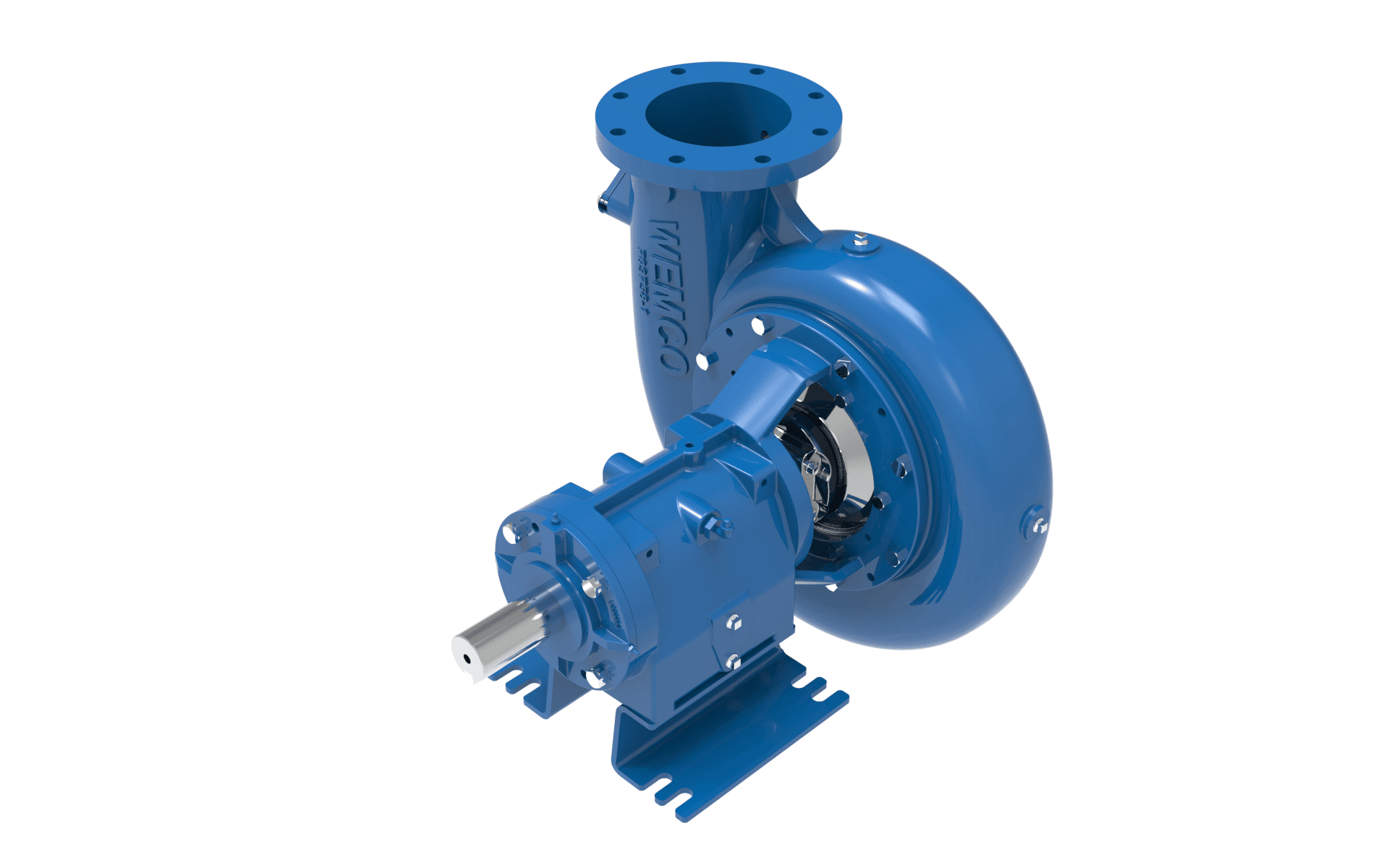

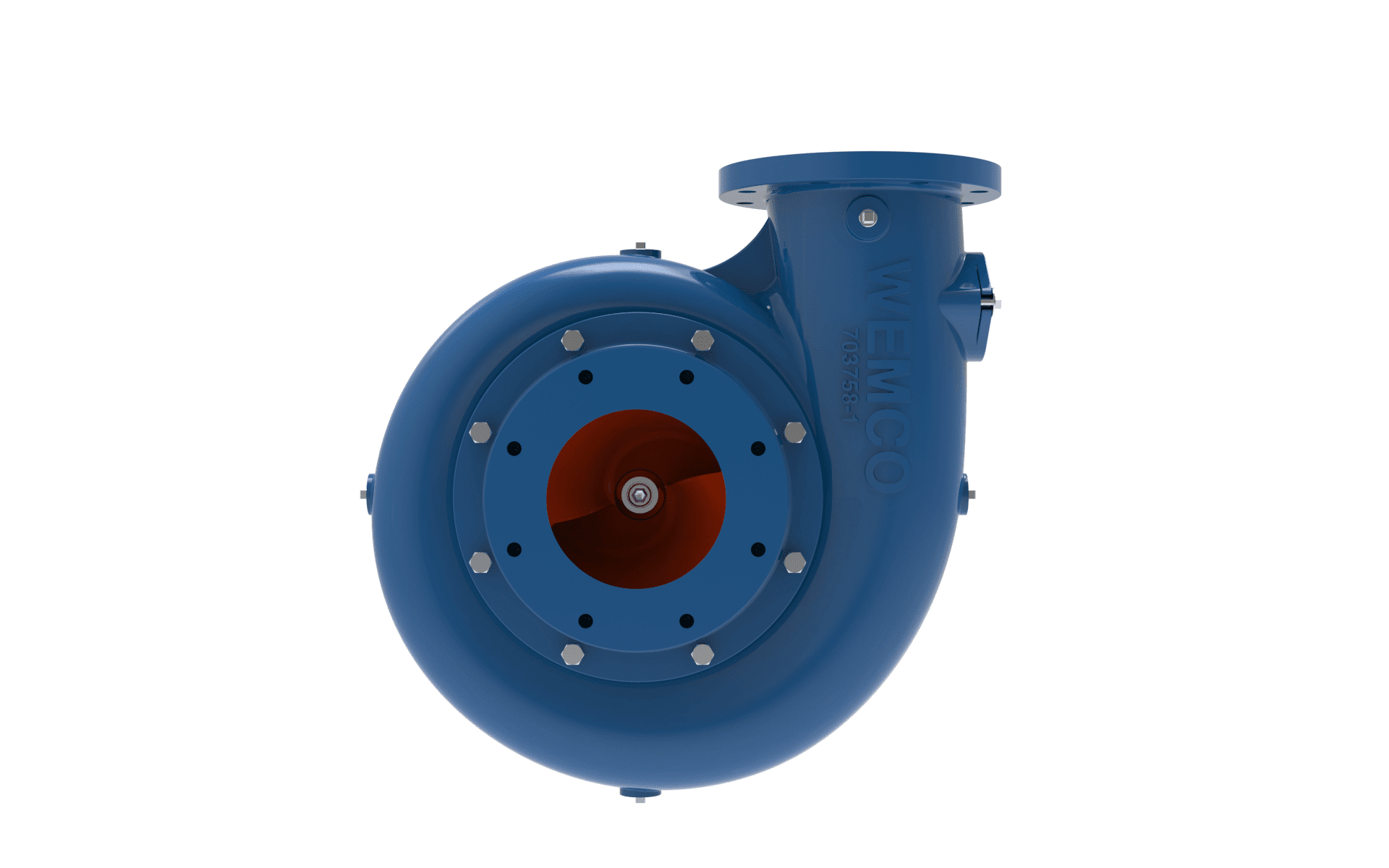

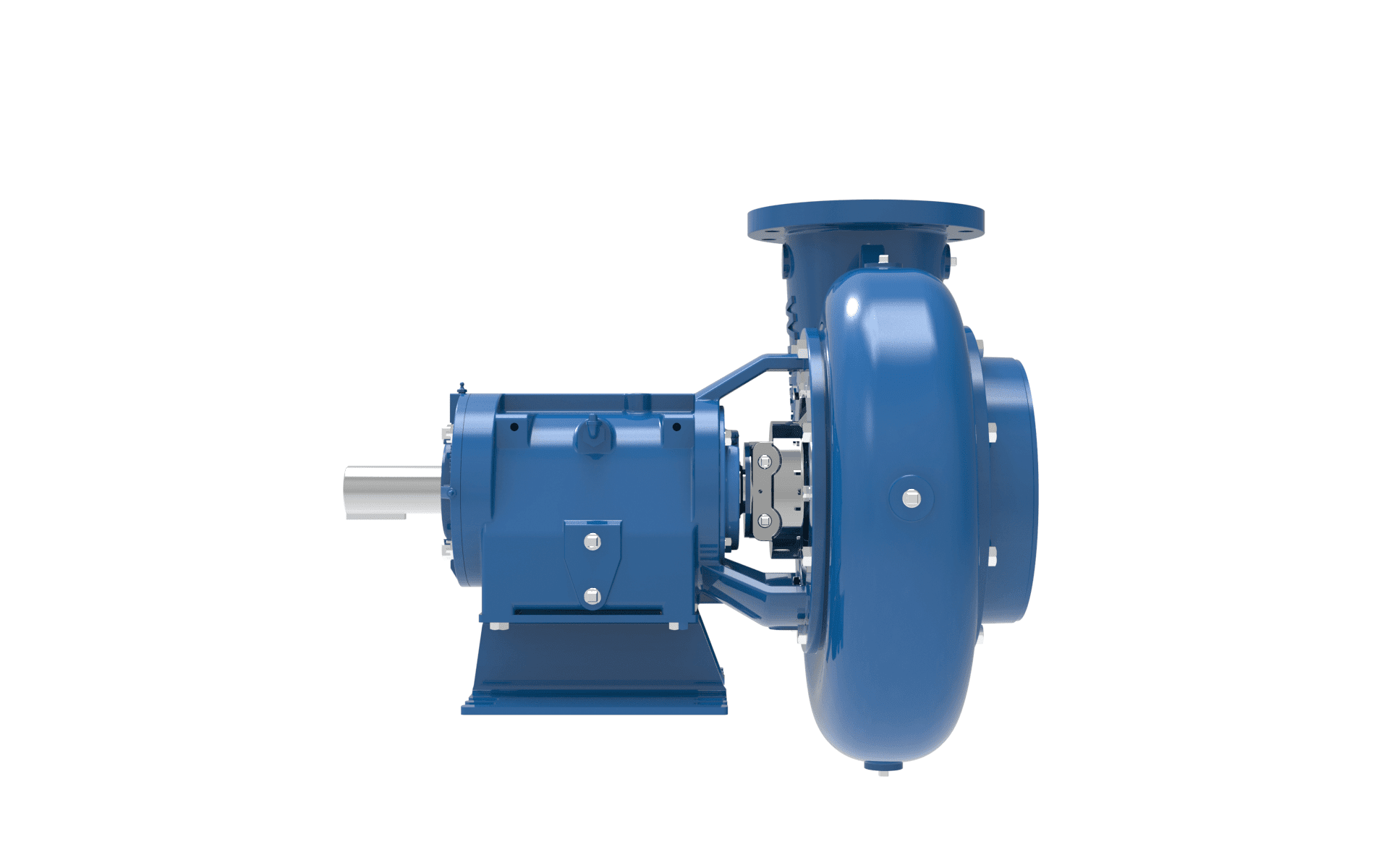

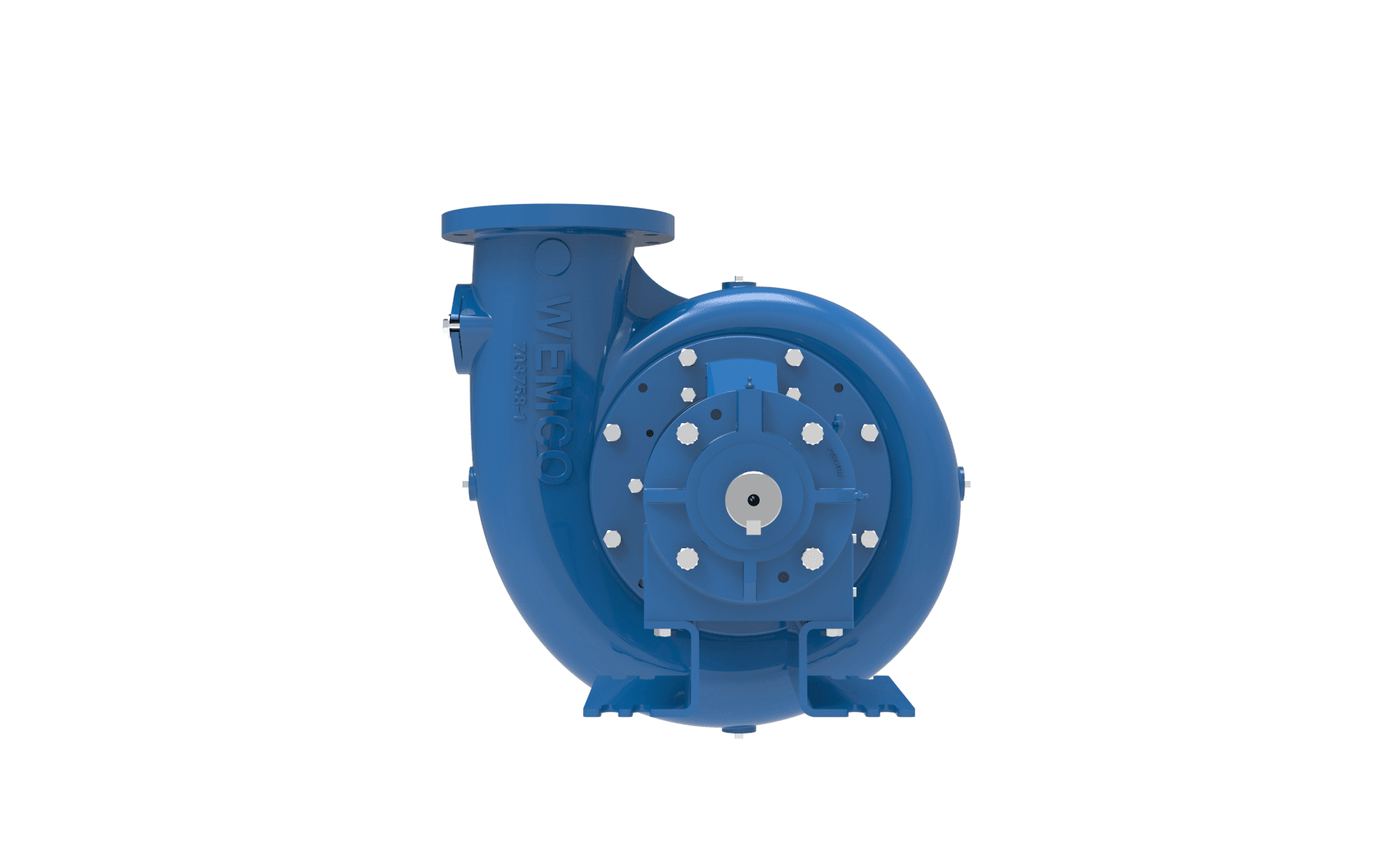

The WSP™ Non-Clog is a heavy-duty pump perfectly designed to maintain high hydraulic efficiencies while handling large solids.

The WSP™ Non-Clog pumps were designed and developed using advanced technology to meet demanding market requirements.

The Non-Clog design is a vastly improved, modernized design compared to conventional non-clog pumps in the marketplace.

It benefits from the latest 3D computer aided design technology, which improves overall pump efficiencies and reduces maintenance and operating costs. The WSP™ Non-Clog is available in four sizes ranging from 4 inch (100mm) to 12 inch (300mm) with the true ability to pass a 3 inch (75mm) solid.

KEY FEATURES & BENEFITS

  • Engine-driven (trailer or skid mounted)
  • Extended operational life
  • Large clean-out port
  • Combined bearing frame and bracket to increase rigidity and reliability
  • Prime Assist option available

APPLICATIONS

  • Sewage Lift Stations
  • Return Activated Sludge
  • Waste Activated Sludge
  • Sewage Bypass
  • Dewatering
  • Digesters
  • Water Booster
  • Manure
  • Industrial Waste
  • Light Abrasives
  • Agricultural Waste
  • Mining
  • Fracking

SIZE RANGE & DIMENSIONS

  • 4, 6, 8, & 12 inch

TEMPERATURE RANGE

  • 41ºF (5°C) – 250ºF (121°C)

CAPACITY FLOW

  • Up to 10,000 gpm (2,498 m³/h)

HEAD

  • Up to 300 ft. (76 m)

MATERIALS CASE

  • Cast iron, CD4, Skotchkoting of the volute

IMPELLER

  • Cast iron, hi-chrome, CD4
