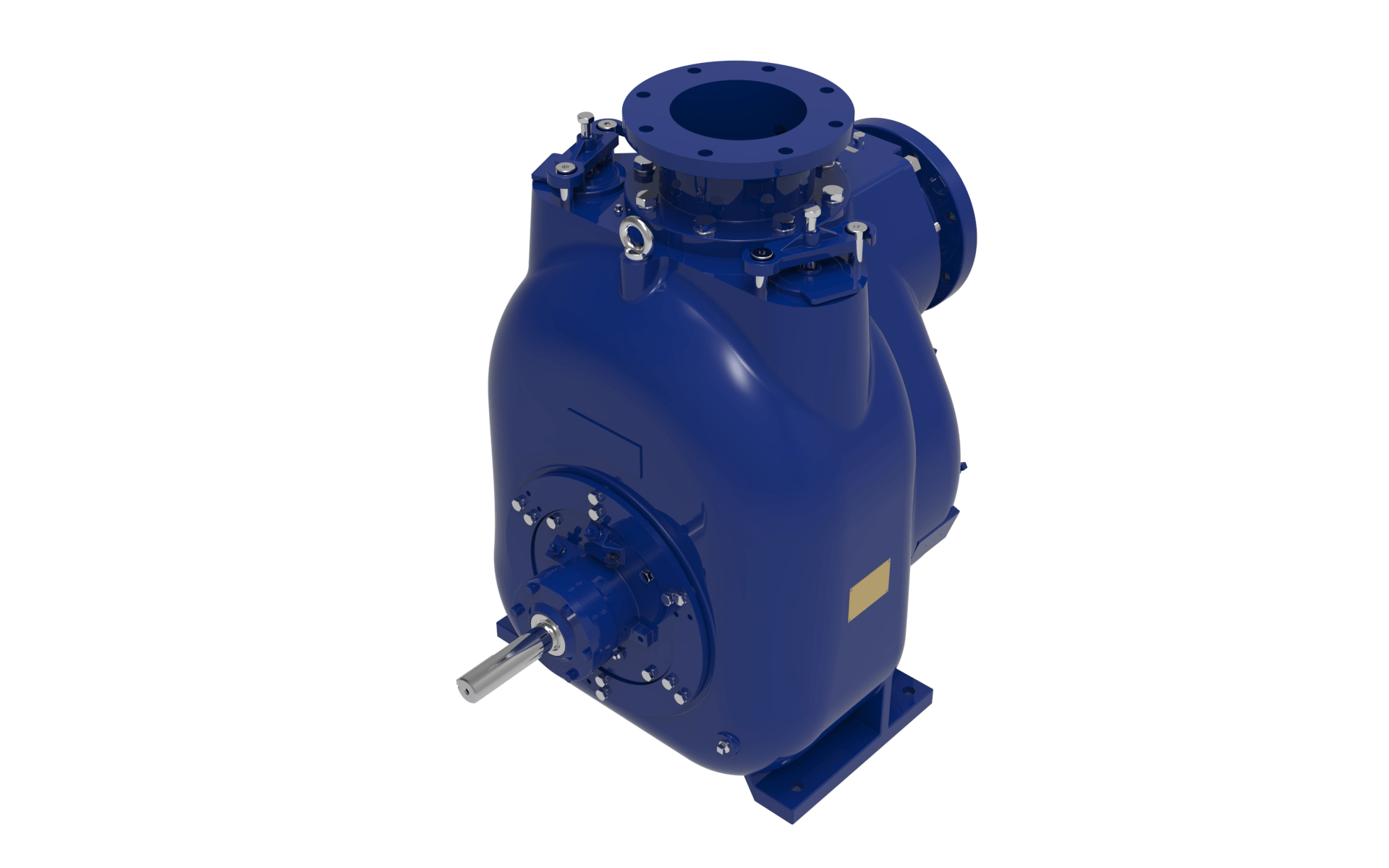

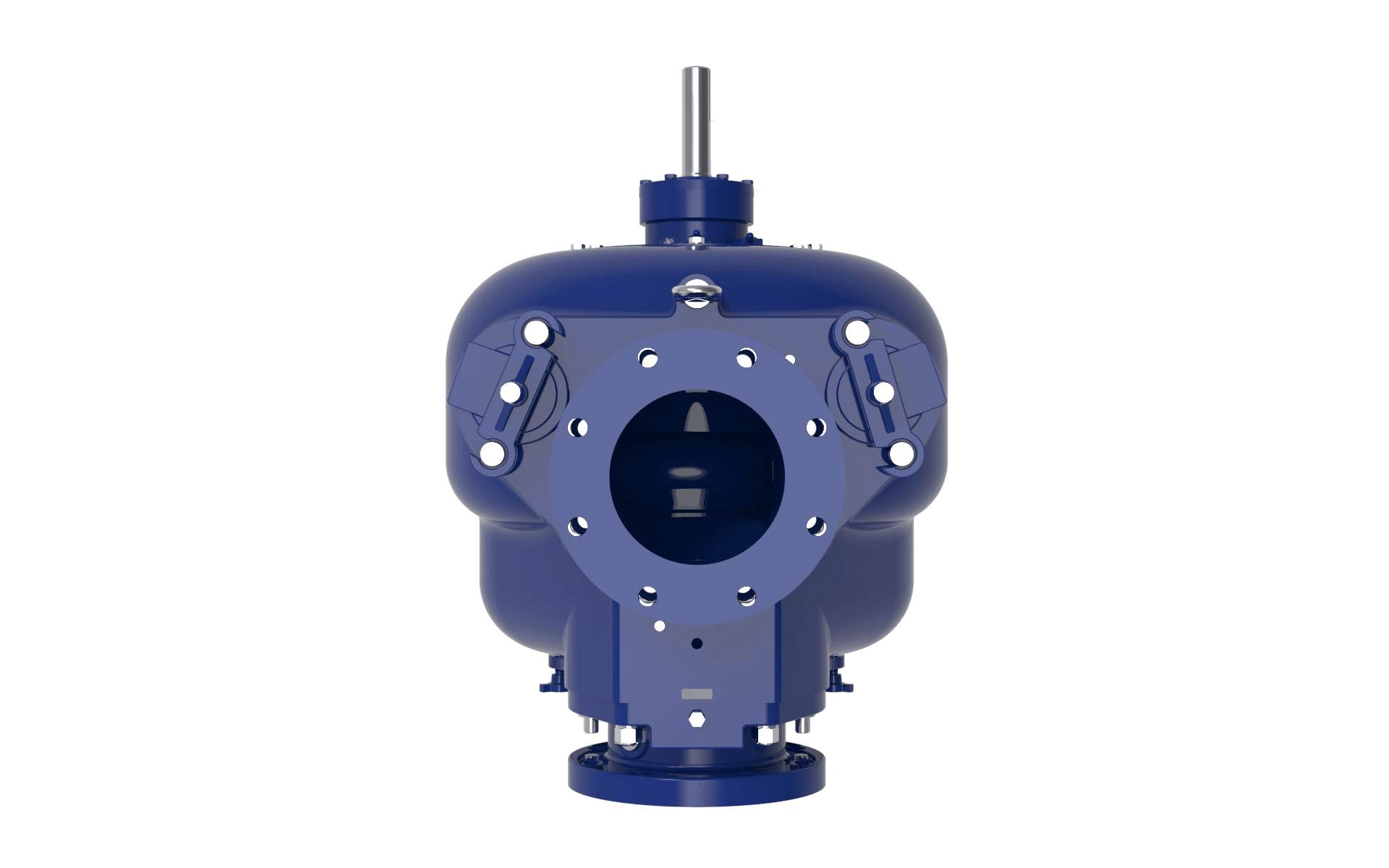

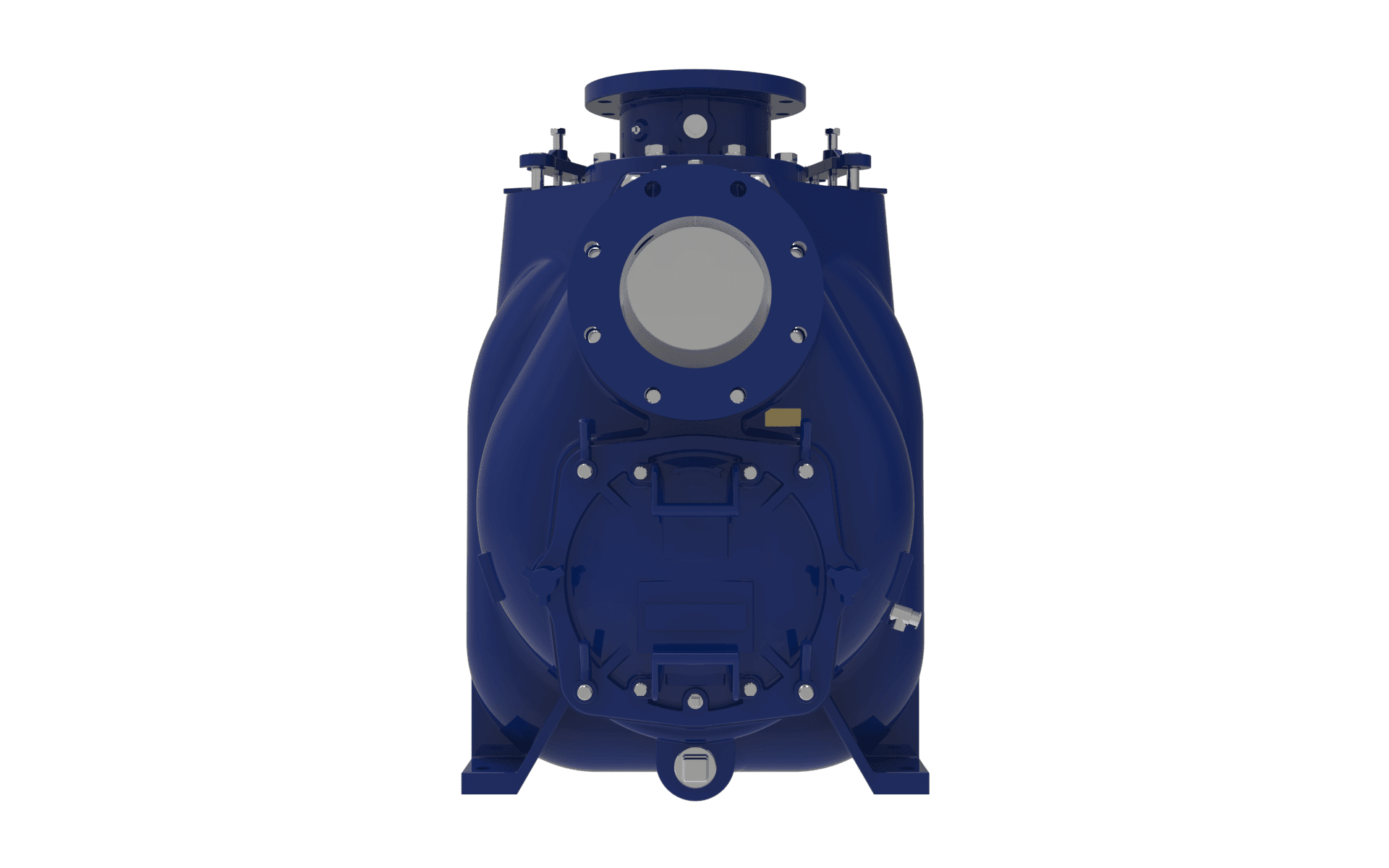

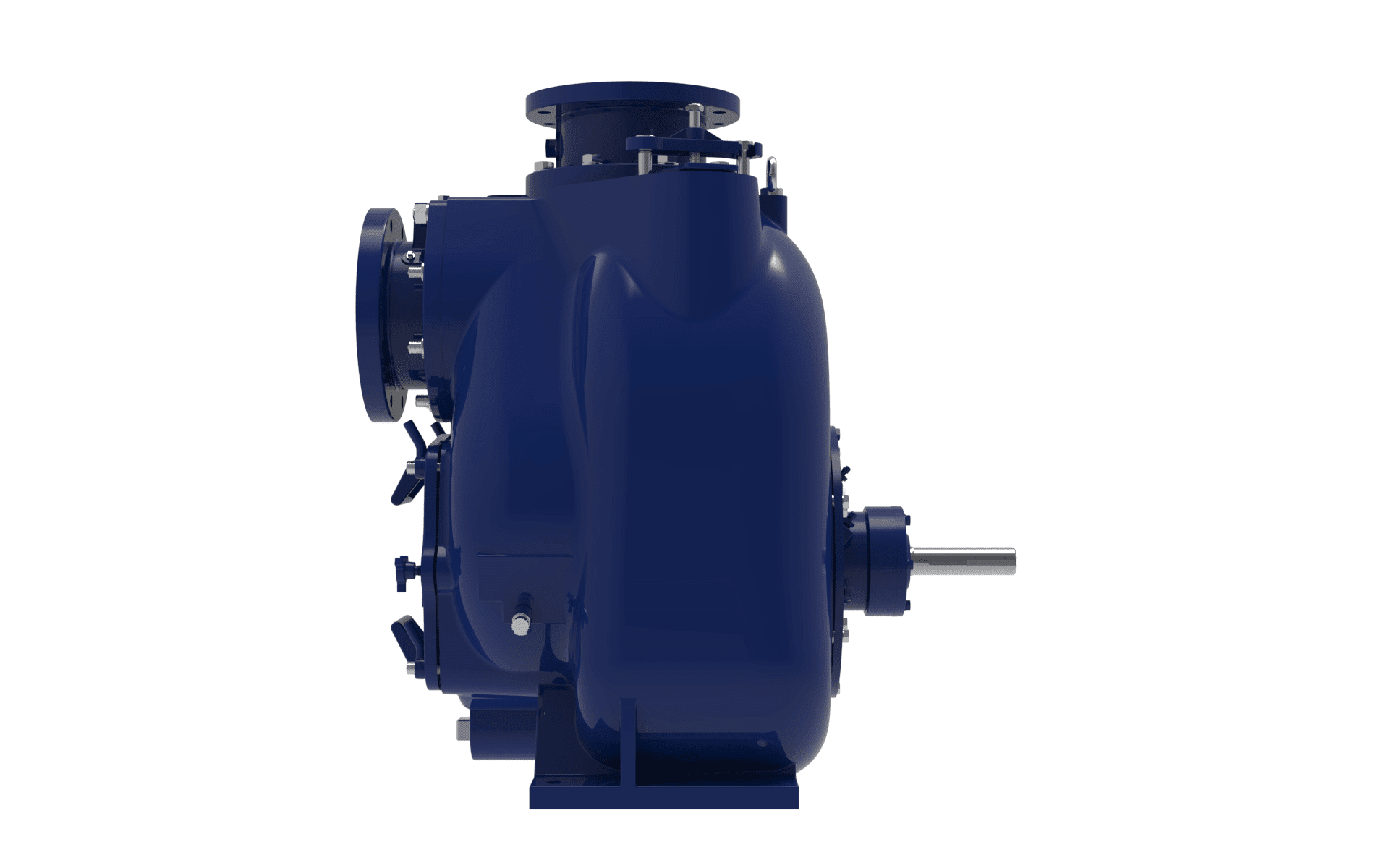

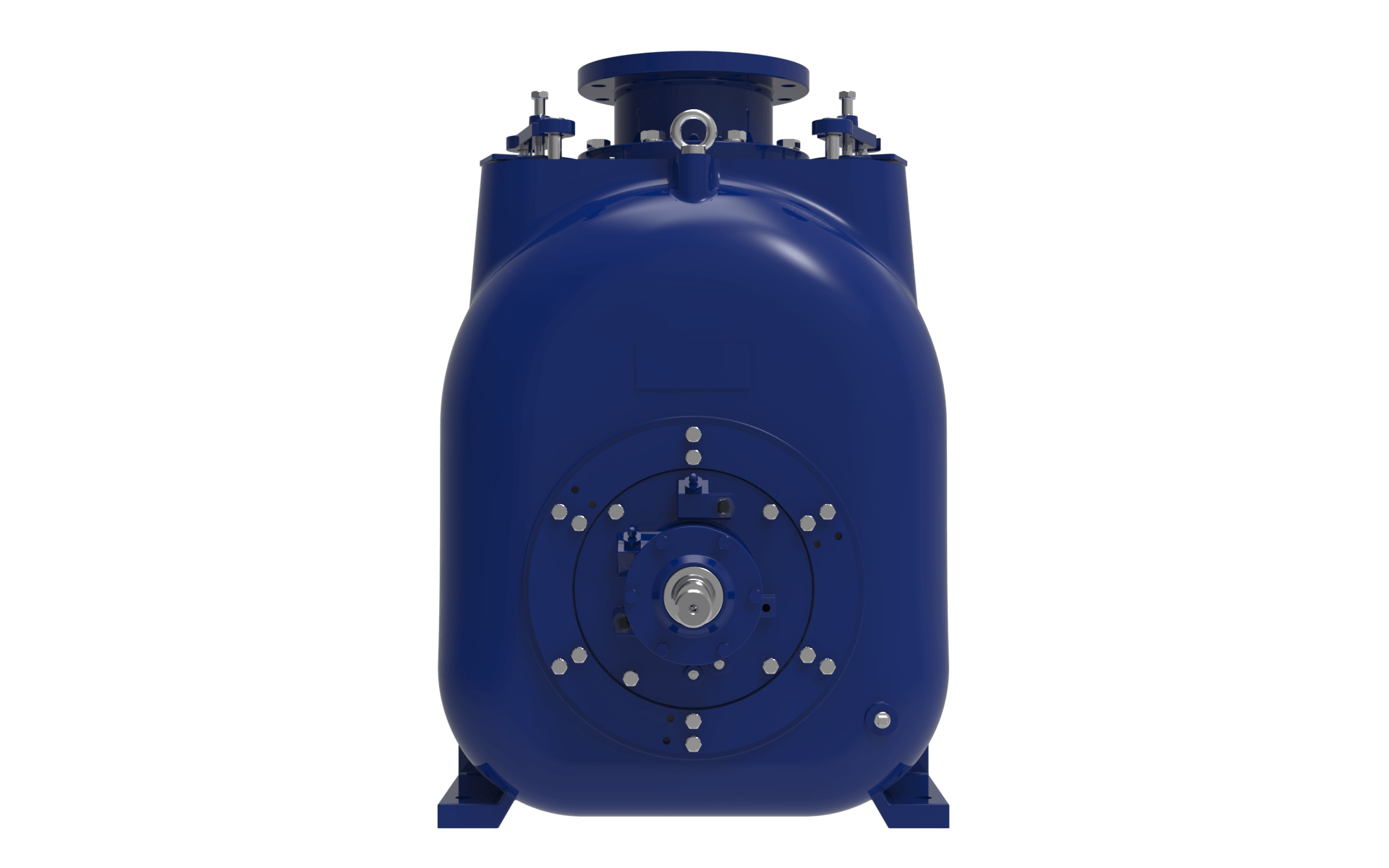

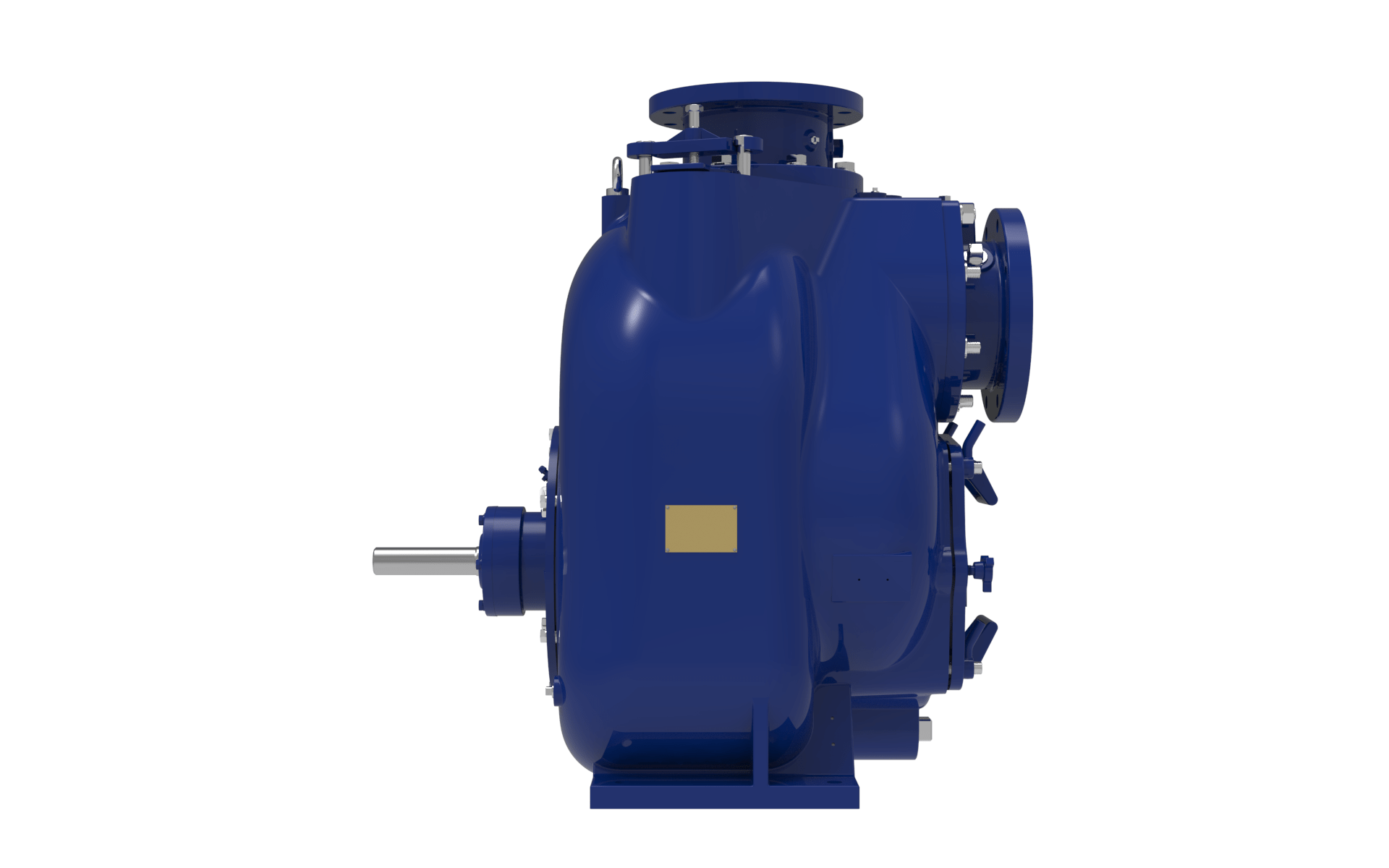

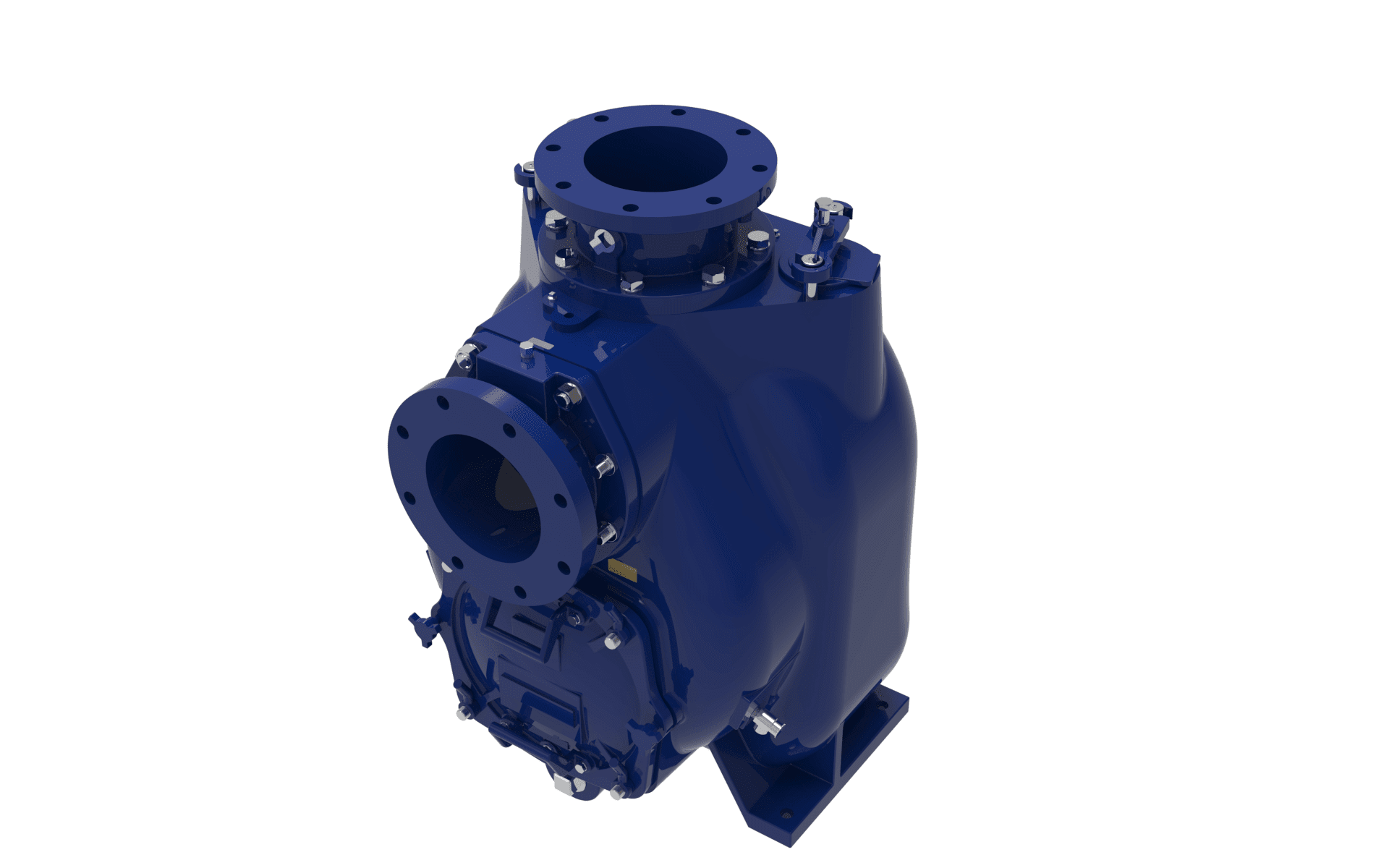

WSP™

Self-Primer

The WSP™ Self-Primer pump is a rugged and dependable self-priming, solids handling, trash pump. Distinguishable from our competitors, the WSP™ Self-Primer pump design allows for a shim-less, tool-less impeller adjustment and ease of suction flap valve replacement.

APPLICATIONS

  • Municipal and industrial wastewater
  • Automotive
  • Metal machining
  • Beef, pork, & poultry processing
  • Production & manufacturing
  • Pulp & paper
  • Dewatering
  • Tanker truck unloading
  • Mining & minerals
  • Drilling mud recovery
  • Winery
  • Food & beverage

KEY FEATURES & BENEFITS

  • Self-priming
  • Buzzsaw™ wear plate
  • Fill Port Cover & Clamp Bar Assembly

SIZE RANGE & DIMENSIONS

  • 2, 4, 6, 8, & 10 inch

HIGH HEAD

  • 3, 4, & 6 inch

TEMPERATURE RANGE

  • 32ºF – 180ºF (0ºC – 83ºC)

CAPACITY HEAD

  • 103 – 250 ft (31 – 76 m)

FLOW

  • 225 – 3,200 gpm (51 – 727 m³/h)

MATERIALS CASE

  • Ductile iron, CD4MCu

IMPELLER

  • Cast steel, Hi-Chrome, CD4MCu
